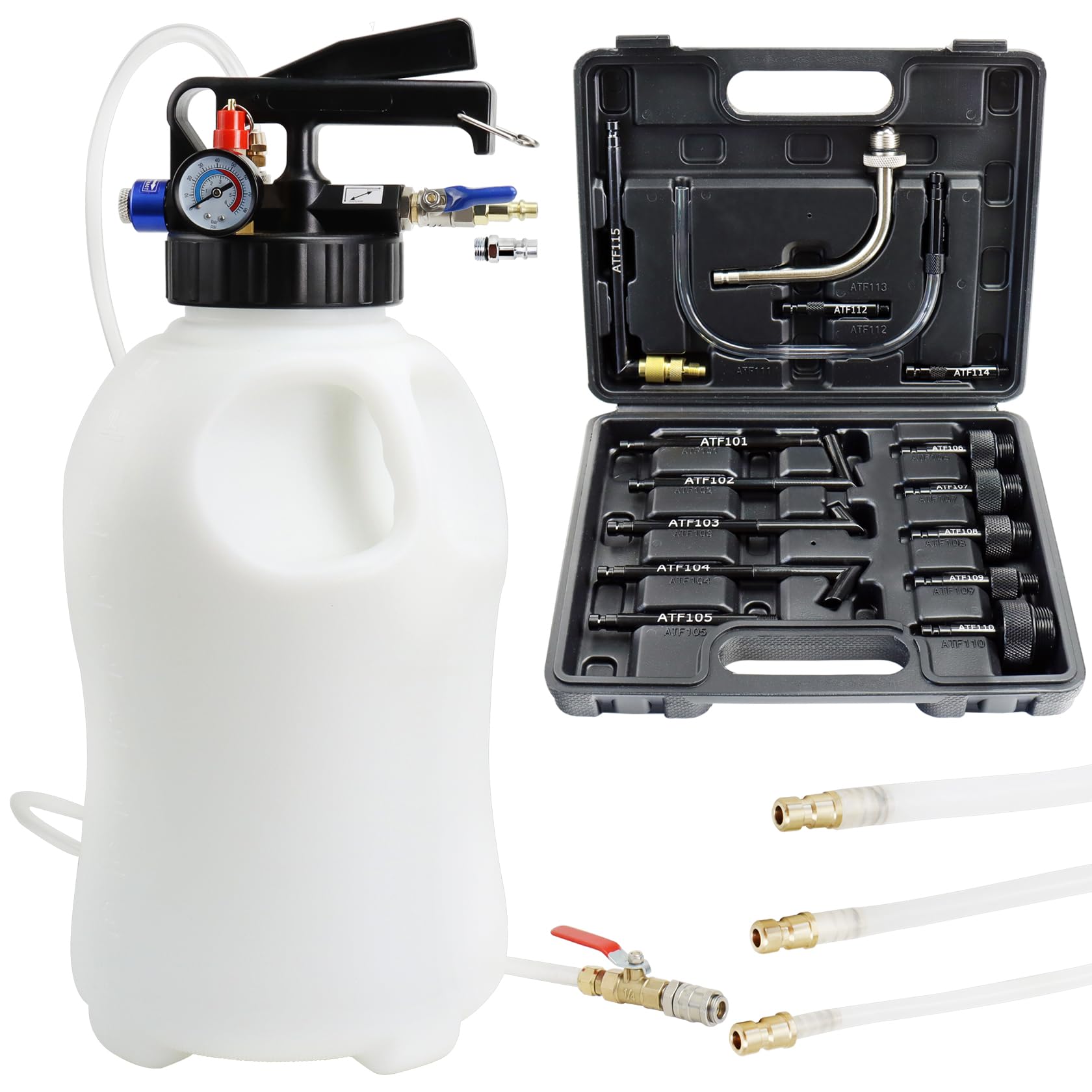

10L Pneumatic Fluid Extractor Dispenser Set - ATF Oil Change Kit for Engine, Transmission, Differential & Power Steering - Includes Pump & Black Case - Perfect for DIY Car Maintenance & Fluid Replacement

Product Description

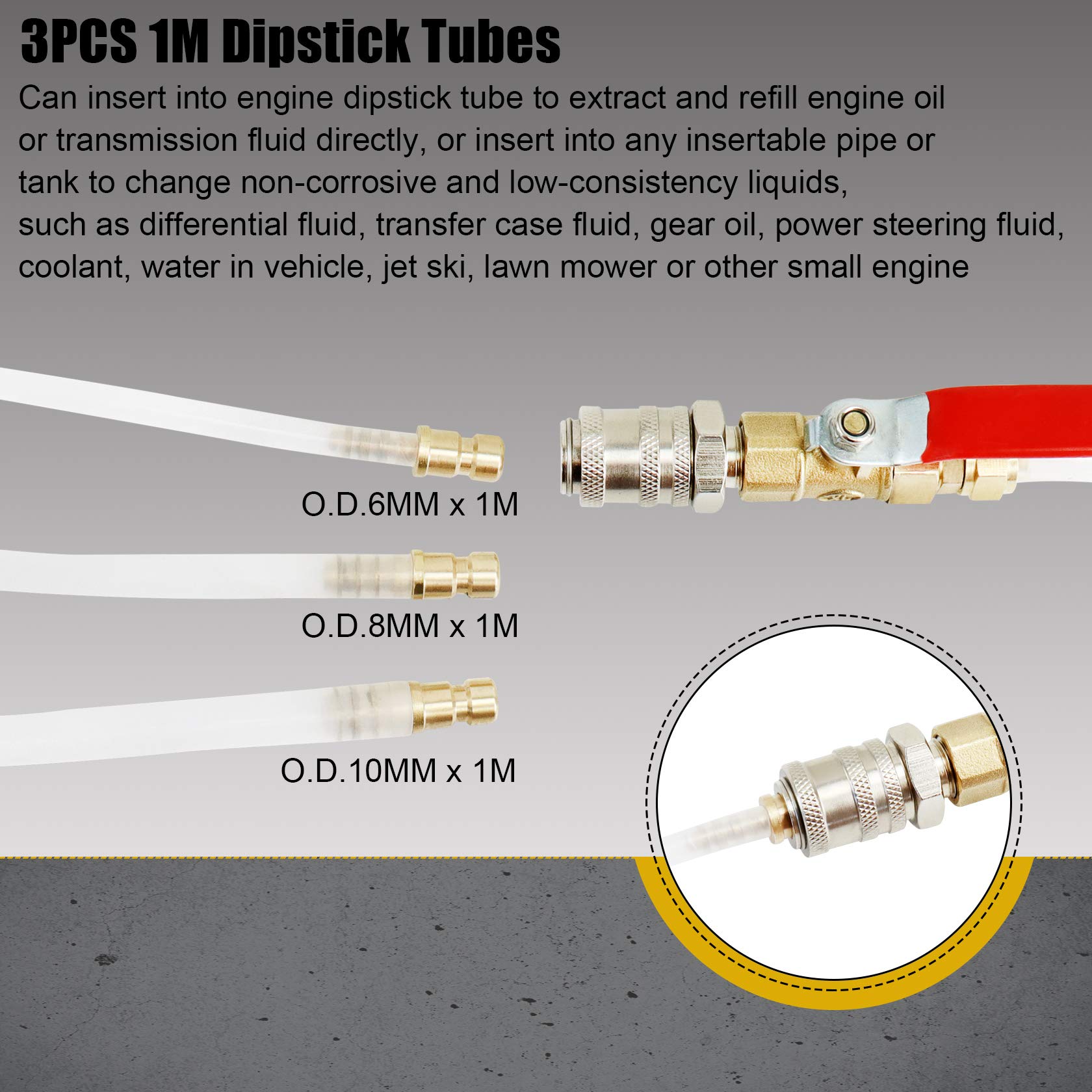

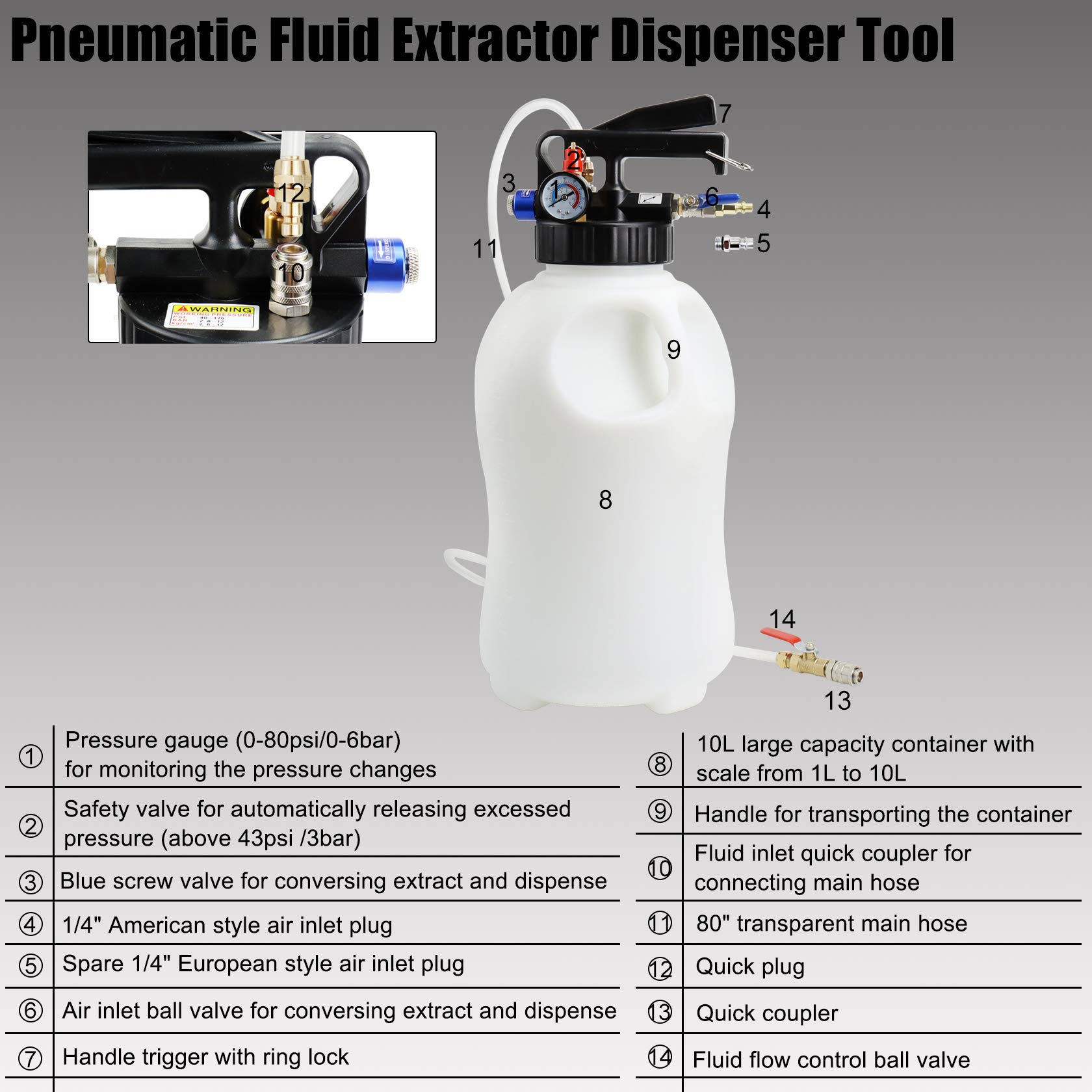

Well constructed reservoir tank 10L large capacity, marked with accurate scale from 1L to 10L.4 bases keep the reservoir stable, making the middle of the bottom is the lowest part, to ensure that the internal liquid can be extracted completely2 large humanized design handles, convenient to transport the full water tank Pump assembly Tightened sealing cap, very difficult to open, to ensure sufficient airtightnessHandle trigger is equipped with ring lock, hand-free while operating2-way control valves (blue screw valve and air inlet ball valve) should be consistent to achieve the conversion between extracting and dispensingSafety valve will trigger and automatically deflate when the pressure exceeds 43psi /3bar1/4" American style air inlet plug is preinstalled in the pump assembly, and with a spare 1/4" European style air inlet plug for more choicePressure gauge (0-80psi/0-6bar) for monitoring the pressure changeQuick coupler for connecting main hose Hose with Flow Control Valve 80" long transparent hose for long-distance transportationOne side quick plug for connecting pump assembly, and the other side quick coupler to connect dipstick tube or ATF adapterBall valve on the quick coupler to control the fluid flow, no need to keep pressing Dipstick Tubes with Quick Plug 3PCS 1M dipstick tubes with 3 different outer diameter (6MM 8MM 10MM), meet the needs of different sizes of dipstick tubes in engine. Harder structure, easy to insert into the bottom of pipes Metal ATF Adapters 15PCS metal adapters are specially used for refilling automatic transmission fluid, packed in a blow-molded case, with instructions for applicable models Pneumatic Fluid Extractor and Dispenser Tool YSTOOL fluid oil change system includes 10L container with pump assembly, 3PCS dipstick tubes and 15PCS ATF filler adapters, is an ideal two-way extractor and dispenser for most fluids. Pneumatic operation increases the extraction and dispense efficiency, convenient and safe. Any fluid in the machines has its own unique function and service life. Regular maintenance and replacement are indispensable, which can ensure the normal operation of the parts and prolong their service life, and save more unnecessary costs. Package List 1x Pneumatic fluid extractor and dispenser tool1x 80" hose with flow control valve3x 1M dipstick tubes with quick plug (O.D. 6MM 8MM 10MM)1x Spare 1/4" European air plug15x Metal ATF adapters in a blow-molded case with a applicable vehicle models instruction Safety Tips 1.Please refer to the instruction and operate under the guidance of professionals2.Wear protective glasses and gloves at all times3.Operate in a dry and ventilated place away from the fire sources 4.If the fluid is absorbed or drained slowly after repeated use, check the small blue cap on the nut and shorten the thread of the cap to restore the circulation speed5.If the operation is not smooth, please carefully check the sealing of each part but not try to open the black cover. Change Motor Oil for Crankcase (OR Change Fluid for Transmission Case and Differential) 1.Park the vehicle on a flat ground, make sure that the vehicle transmission is in the "neutral" or "parking" position, and step on the parking brake.2.Start the engine. Let the engine idle until it reaches normal operating temperature. Once completed, shut down the engine.3.Remove the engine oil dipstick for changing motor oil (OR Remove the transmission fluid dipstick or fill plug for changing transmission fluid).4.Select a suitable diameter dipstick tube and insert it into the dipstick hole, move the tube in the dipstick tube up and down to ensure it was getting to the bottom.5.Connect the dipstick tube, the main hose, the pump assembly, the two-way air compressor, make sure all the parts are well connected without leakage, and close all the valves.6.Place the blue screw valve and the air inlet ball valve on "EXTRACT", remember to keep the both valves consistent. Open the air compressor (choose vacuumize function), handle trigger, and ball valve on the main tube, lock the handle trigger to extract the oil or fluid from engine. 7.Once all the oil or fluid is extracted, close all valves, take out the dipstick tube from engine oil dipstick (OR transmission fluid dipstick or fill plug) and insert it into waste oil tank. Place the blue screw valve and the air inlet ball valve on "DISPENSE", remember to keep the both valves. Open the air compressor (choose pressurize function), handle trigger, and ball valve on the main tube, lock the handle trigger to dispense the waste oil or fluid. Observe the pressure gauge and keep the pressure under control.8.Extract clean solvent or engine degreaser to rinse out the reservoir tank and dispense it out to waste liquid tank. Allow it to dry thoroughly.9.Then extract new motor oil (OR transmission fluid) and dispense it into engine crankcase (OR transmission) until the desired level.10.Follow your vehicle's operating instructions to circulate the new oil and then re-check the level Please note: 1.Fluid temperature range : -3°F ~ 140°F2.While change the coolant, make sure the engine is cool, to prevent the hot coolant from spraying and scalding3.This kit can be used for any insertable pipe or tank to change non-corrosive and low-consistency liquids, such as engine oil, transmission fluid, differential fluid, transfer case fluid, gear oil, power steering fluid, coolant, water in vehicle, jet ski, lawn mower or other small engine. Do not use for corrosive liquids to avoid corrosion of parts. It is recommended to use our brake bleeder kit B08BFV4TZ4 or B08CR7KG9H to replace the brake fluid4.While use ATF adapters to change the transmission fluid, you need to lift the vehicle and drain the old transmission fluid from the drain plug on the transmission pan, then add the new transmission fluid from the fill plug or drain plug. Application for 15PCS ATF Adapters ATF101 (1/8"-27) Compatible with FordATF102 Compatible with universal BMW, Nissan, Honda, etcATF103 Compatible with VW, SkodaATF104 Compatible with Porsche, VWATF105 (M10 x 1) Compatible with VW, Mini CooperATF106 (M24 x 1.5) Compatible with VW DSGATF107 (M22 x 1.5) Compatible with VW CVTATF108 (M18 x 1.5) Compatible with Skoda, VWATF109 (M12 x 1.5) Compatible with ALTIS 2010 BENZ 722.9ATF110 (M30 x 1.5) Compatible with Skoda, VWATF111 (Universal Flexible 300mm) Compatible with Honda, Kia, Hyundai, etcATF112 (M8 x 1) Compatible with Nissan, InfinitiATF113 (M18 x 1.5) Compatible with Toyota,LexusATF114 (5/16"-24UNF) Compatible with VOLVOATF115 Compatible with Universal (Flexible Hose) Customer Reviews Price Function Manual Pressure Brake Clutch Fluid Bleeder Pneumatic Pressure Brake Clutch Fluid Bleeder Pneumatic Pressure Brake Clutch Fluid Bleeder Manual ATF Refill Pump Pneumatic ATF Extractor and Dispenser Manual ATF Refill Pump
