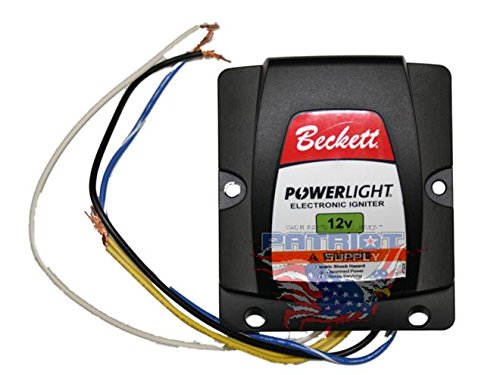

Beckett 5270005U Powerlight 12VDC Ignitor - Replacement for ADC & SDC Oil Burners (Compatible with 5218309U, 7435U) - Perfect for Home Heating Systems & Commercial Boiler Maintenance

Product Description

Beckett 5270005U Powerlight 12VDC Ignitor Only For ADC And SDC Oil Burners **Does NOT Include A Base Plate** Replaces 5218309U, 7435U, 5049, 7-7435U, 98026640, 9.802-664.0, 98026870, 9.802-687.0, 079681, 630808 Specifications: Input Voltage: 10.8 - 16 Vdc Output Voltage: 20 kV peak Output Current: 25 mA RMS Input Current: 1.8A Ambient Operating Temperature: -40 to +150° F Storage Temperature: -40 to +150° F Moisture: 5 to 95% Relative Humidity, Condensing Application Information: This igniter is designed for use with 12 VDC. It is rated for continuous duty and can be used with intermittent, or interrupted ignition primary controls. The Beckett oil igniter is designed to mount in the same manner as standard ignition transformers and igniters. This igniter can be adapted to multiple base plates to accommodate Beckett ADC & SDC burners. It will also fit on many other vendors’ transformer base plates.
