SKU:16170598

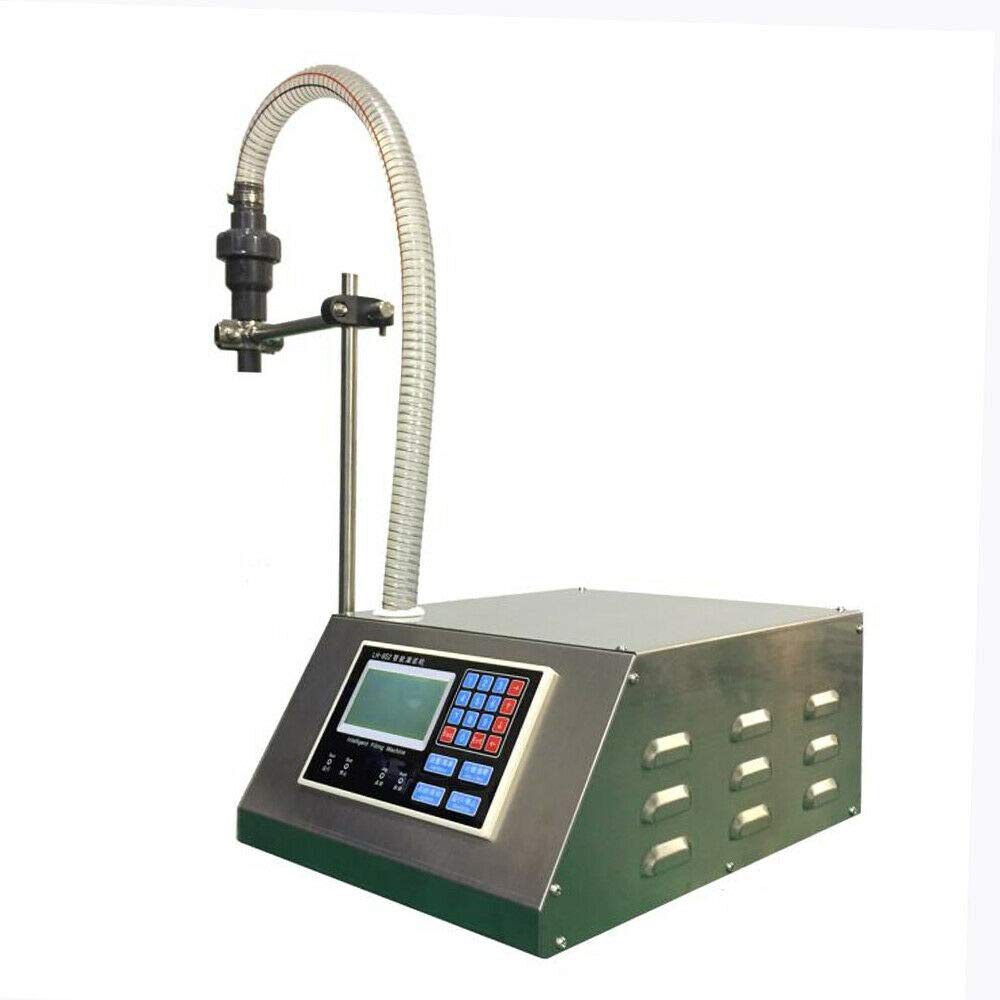

Product parameters:Model: LH-852Voltage: AC110vRated power: 210wFilling range: 0.01-999.99Unit of measurement: s/g/kg/ml/lMinimum filling: 50gWaiting time: 0.01-999.99sCounting range: 1-99999Filling speed: 17L/min (water)Filling error: ±1%Vacuum: 2mNozzle: outer diameter 20mmDischarge tube: outer diameter 25mm/length 0.6mFeeding tube: outer diameter 25mm/length 2.0mLiquid temperature: ≤60℃Host specification: 360*300*156mmMachine weight: 8.5kgViscous liquid: applicableOrdinary liquid filling: 17L/minViscous liquid filling: about 7L/minPanel introductionSetting/Menu: Short press this key to enter the setting interface to modify the filling parameters, long press this key for 3 seconds to enter the menuRun/stop: press this key to start filling when filling is stopped, press this key to stop when fillingJog/Auto: Press this key to switch working modeJog: Press once to fill onceAutomatic: after pressing once, the filling machine finishes the countdown waiting time and then fills the second time, and continues to cycle until the run key is pressed again to stopCount clear: filling counter data reset to zeroEsc: exitEnt: Confirm, press this key on the working interface to directly select the program number↑↓←→: Move cursor when modifying parameters0-9 key: input digital indicator: light indicates the current working status of the devicepacking list:Main unit*1, bracket*1, power cord*1, foot switch*1, hexagon wrench*1, instruction manual*1
♛ ACCURATE LIQUID FILLING -- The digital liquid filling machine uses a microcomputer to control the pump's working time, speed and other factors to achieve a liquid filling device with accurate output and small repeat error. High filling accuracy deviation is less than 1%, and with deviation correction function;High filling speed 17 liters/minute (water), the speed can be adjusted 1-99%;High degree of intelligence There are automatic and inching mode, with filling parameter learning function.
♛ EASY AND PRACTICAL -- Chinese and English bilingual menu, Full numeric keyboard modify the parameters and input the numbers directly, without pressing the plus and minus keys to slowly add or subtract.easy to operate. filling accuracy can be controlled within ±1%. it is very flexible and and is suitable for different kinds of liquid filling.
♛ SUPERIOR PIPE & ANTI DRIPPING -- Single-point calibration calibrate and replace the weight of the peer product as much as possible. Re-calibration is required for the filling volume. Once our products are calibrated, all weights can be accurately filled.such as Various quantitative units time S weight g, kg volume ml, L.
♛ ACID & ALKALI RESISTANCE -- Lh-852 Liquid Filling Machine is suitable for the filling of ordinary liquid and viscous liquid. With oil resistance, heat resistance, weak acid resistance, weak alkali resistance, corrosion resistance and other characteristics, it can be widely used in food, beverage, pharmaceutical, chemical, oil, cosmetics and other industries.
♛ PACKING LIST -- Main unit*1, bracket*1, power cord*1, foot switch*1, hexagon wrench*1, instruction manual*1. If you have any questions, you can contact KOUGER customer service, we will give you a satisfactory answer within 24 hours!
