SKU:17475522

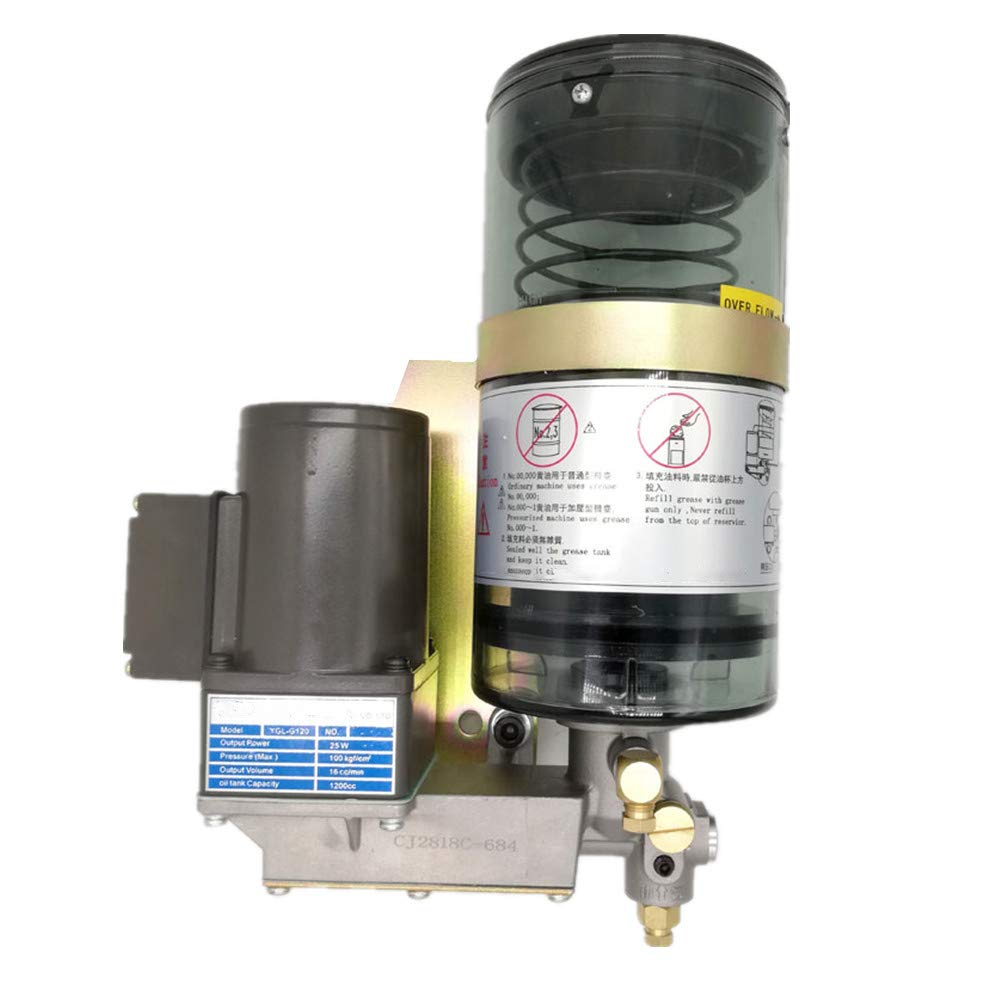

Description: The motor reducer drives the piston group to move in the pump body through the crank rotation to complete the oil suction and discharge reciprocating motion. This semi-automatic grease pump is applicable for grease lubricant viscosity Normal: 00#, 000# Pressurized: 000# ~ 1# Product Parameters: Model: YGL-G120 Power: 25W Pressure(Max): 100kgf/cm2 Output Volume: 16cc/min Oil Tank Capacity: 1200cc Caliber of Output: Φ6 Weight: 5kg

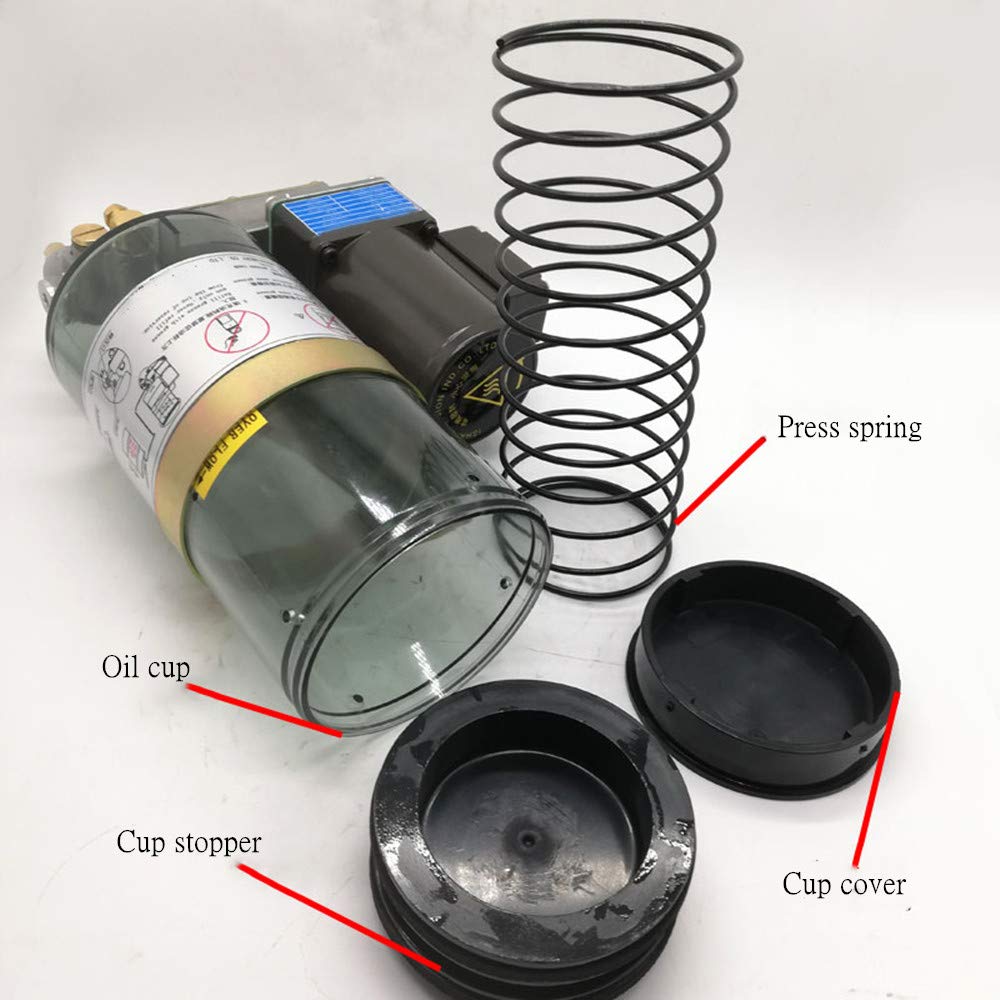

1. Use new type of grease chunk to prevent the grease residue in the reservoir cup, grease chunk jammed and rollover.
2. Electric grease pump is Equipped with plunger check valve, which can prevent the grease reverse flow.
3. The constant pressure function of the pressure relief valve can ensure service life.
4. The intermittent time and lubrication time can be external PLC controlled.
5. It is widely used in engineering machine, transportation machine, machine tools, textile, light industry, forging machine and other machinery equipment.
