SKU:18688129

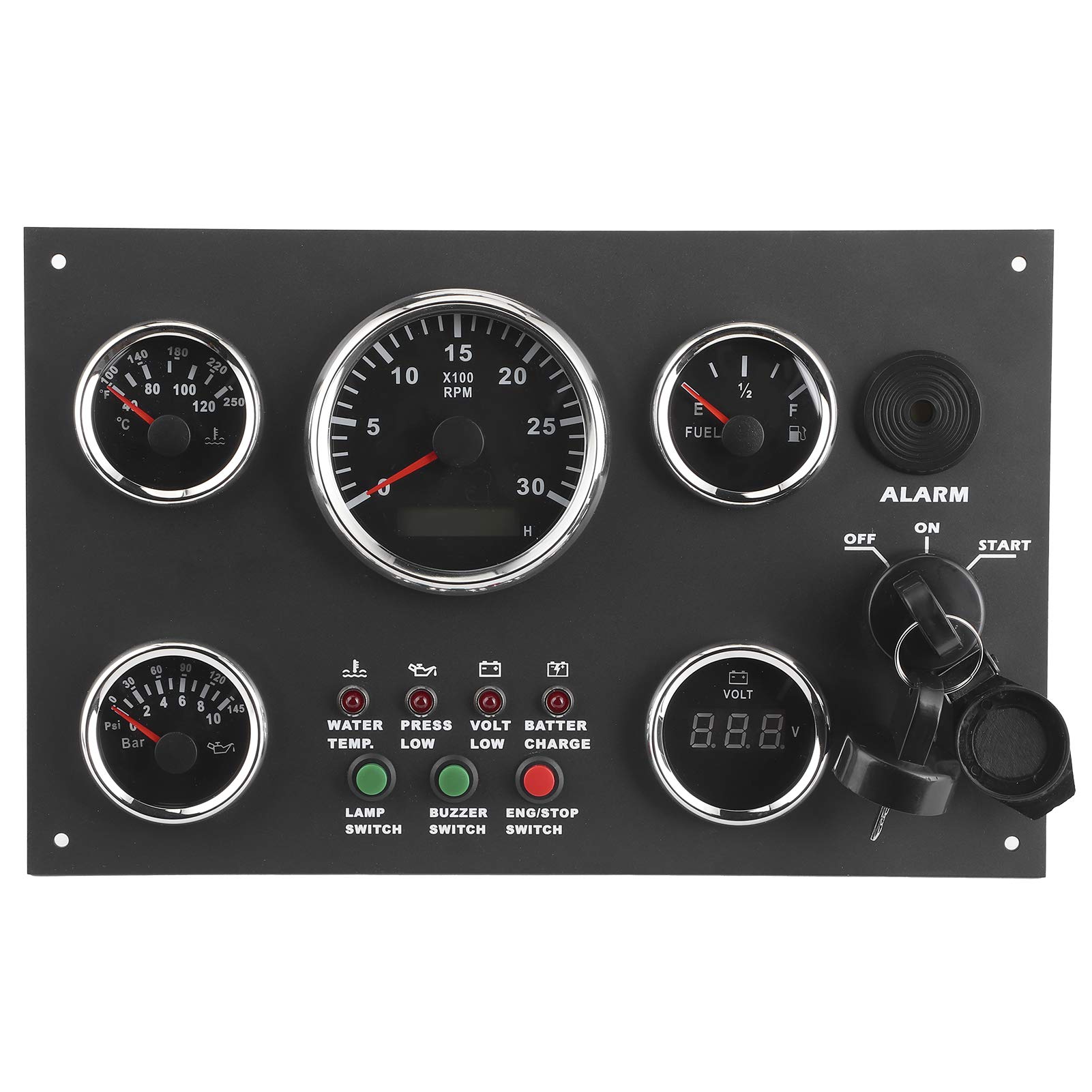

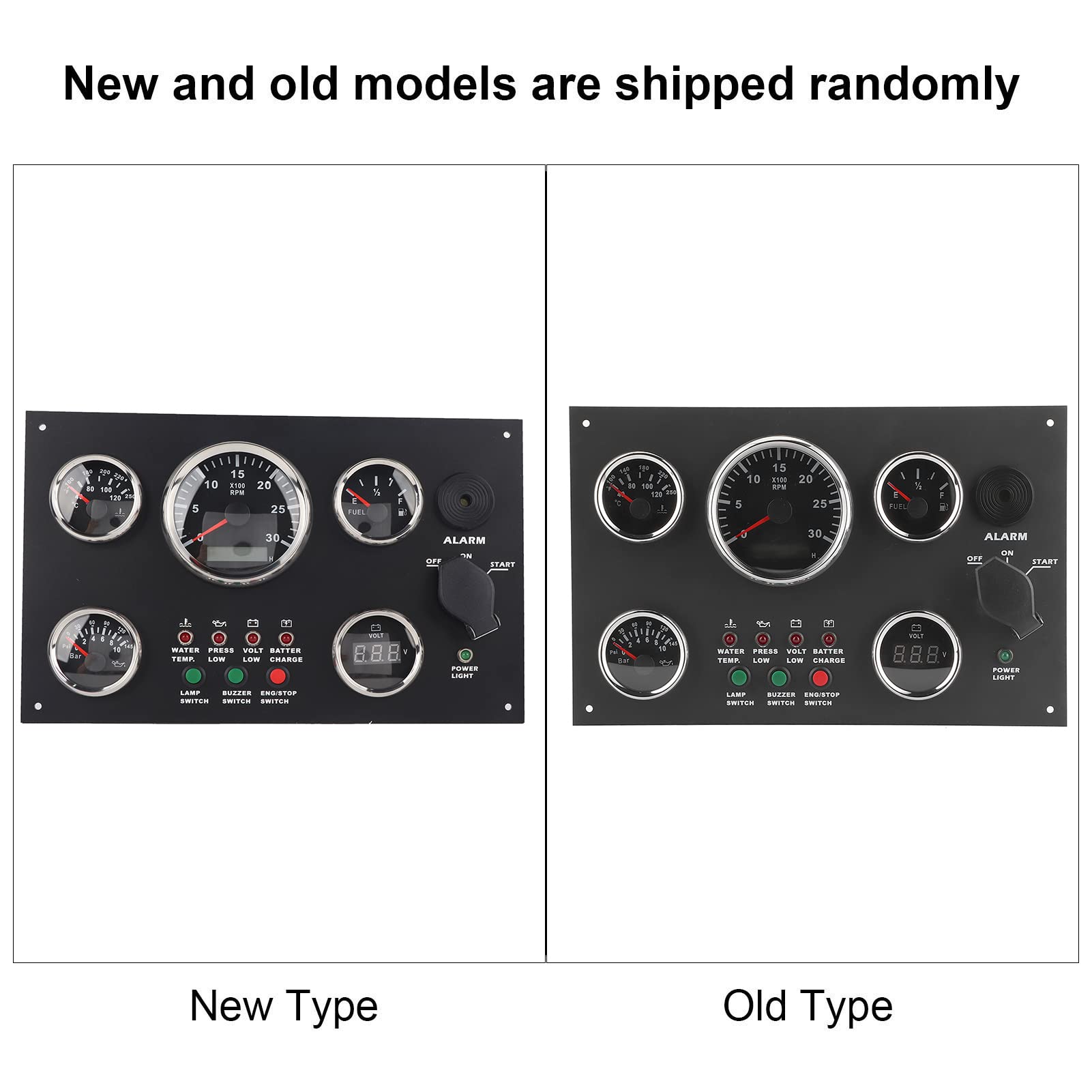

Specification: Condition: 100% Brand New Item Type: Gauge Cluster Material: Stainless Steel + Nickel-plated Plastic 52mm/2in, Red Backlight 82mm/3.2in, 8 color Backlight Operating Voltage: 9-32VDC Operating Current: ≤100mA Operation Mode: LCD display, stepper motor Input Signal: Pluse Signal from tacho sensor, engine, ignition coil, crankshaft sensor, etc. Protection Class: IP67,can work underwater 1m position Functions: Water Temperature Meter Range: 40-120 degrees Celsius Oil Pressure: 0-140psi Engine Speed: 0-3000RPM, Hourly Timing Oil Level Gauge: E-1/2-F Voltage: 0-38V Package List: 1 x Gauge Cluster 2 x Ignition Keys 1 x Manual Note: 1. Each product will be shipped with a detailed product manual. The manual will clearly describe the installation, wiring and use functions of the product, so there is no need to worry about the situation that it will not be used after purchase. 2. Each product is packaged in a hard carton, and the bubble cotton is anti‑drop filling, ensuring that your order remains in a brand new state before receipt. 3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
【MULTIPLE FUNCTIONS】This automotive replacement water temperature gauge set can be taken as engine oil pressure gauge, oil level gauge, water temperature gauge, engine battery voltage gauge, engine speed meter. The water temperature meter range is 40-120 degrees Celsius, oil pressure is 0-140psi, engine speed is 0-3000RPM, Hourly Timing, oil level gauge is E-1/2-F and voltage is 0-38V.

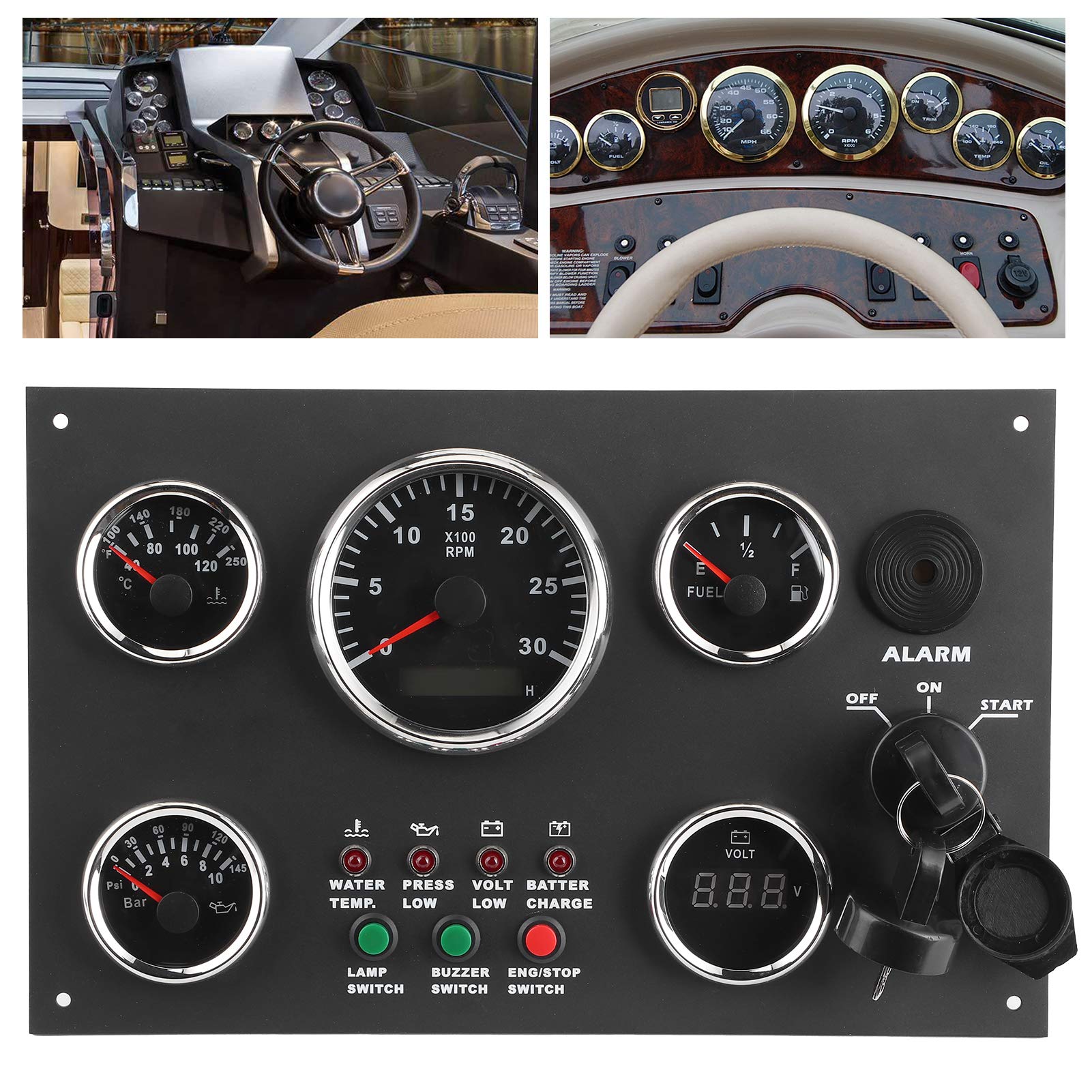

【UPGRADED APPEARANCE】This automotive replacement oil pressure gauge set adopts LCD display. The 52mm/2in gauges features red backlight, and the 82mm/3.2in gauges features 8 color backlight, which makes it is easy to read both day and night. This instrument cluster upgrade kit also is designed to upgrade the appearance of the original cluster on specified vehicles, marine.

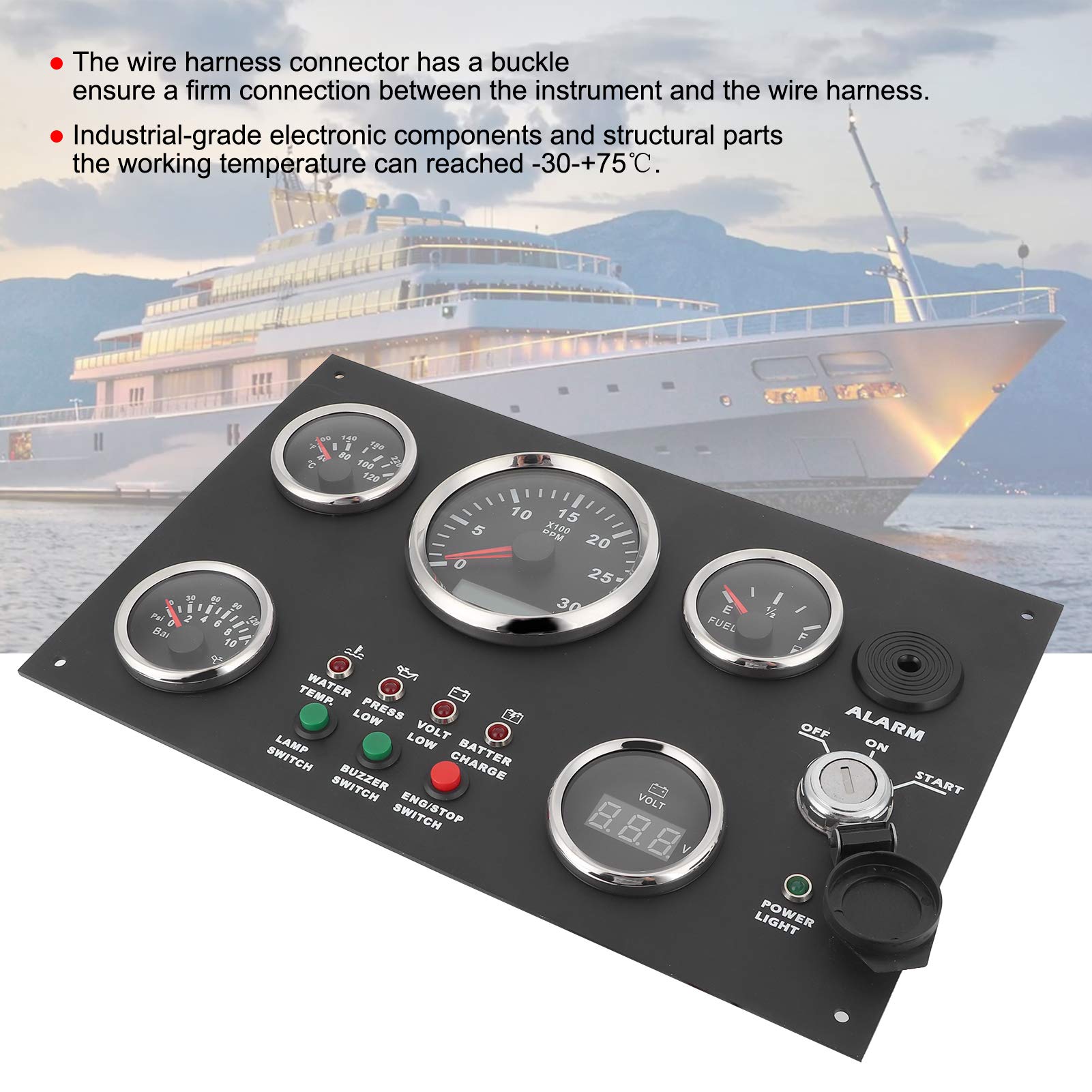

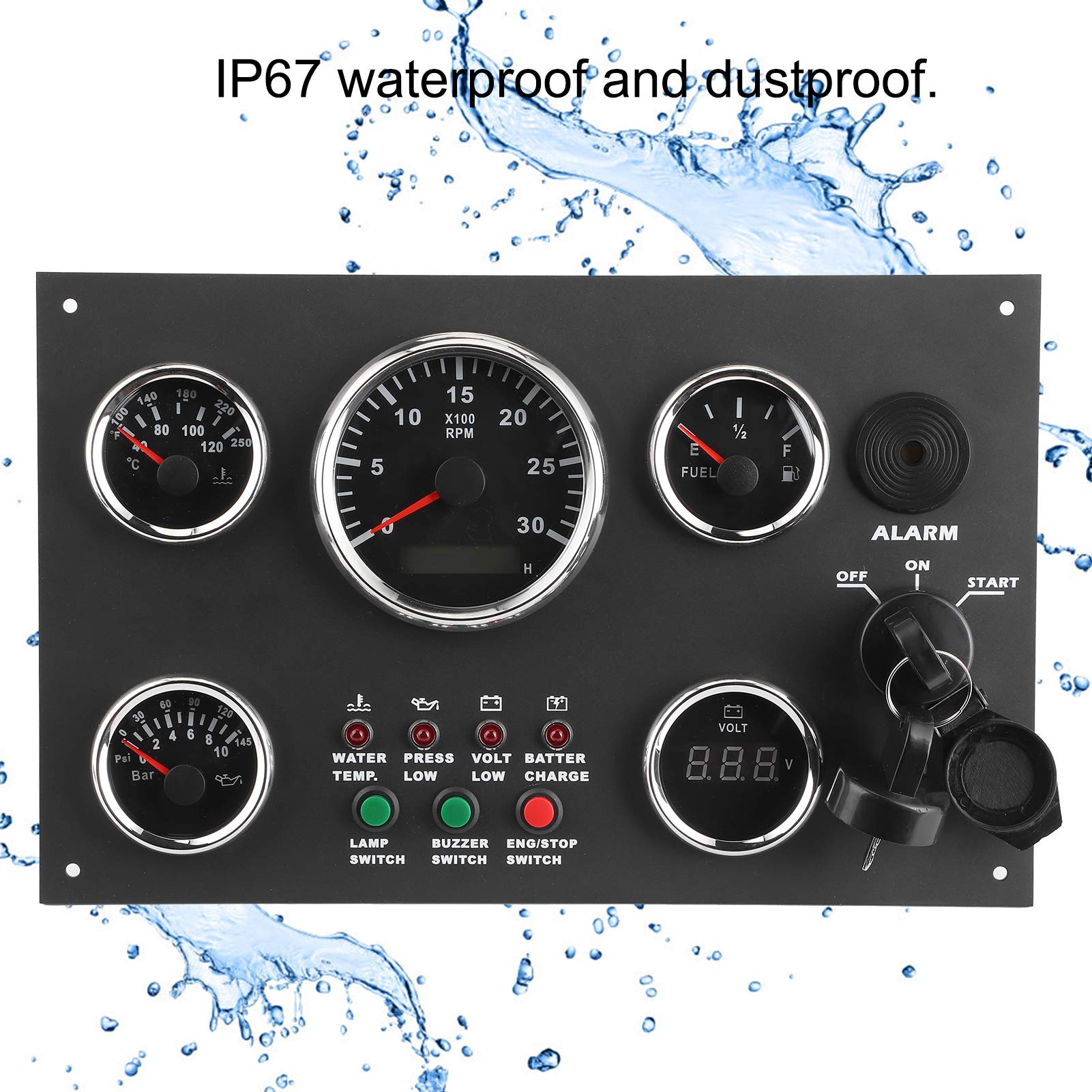

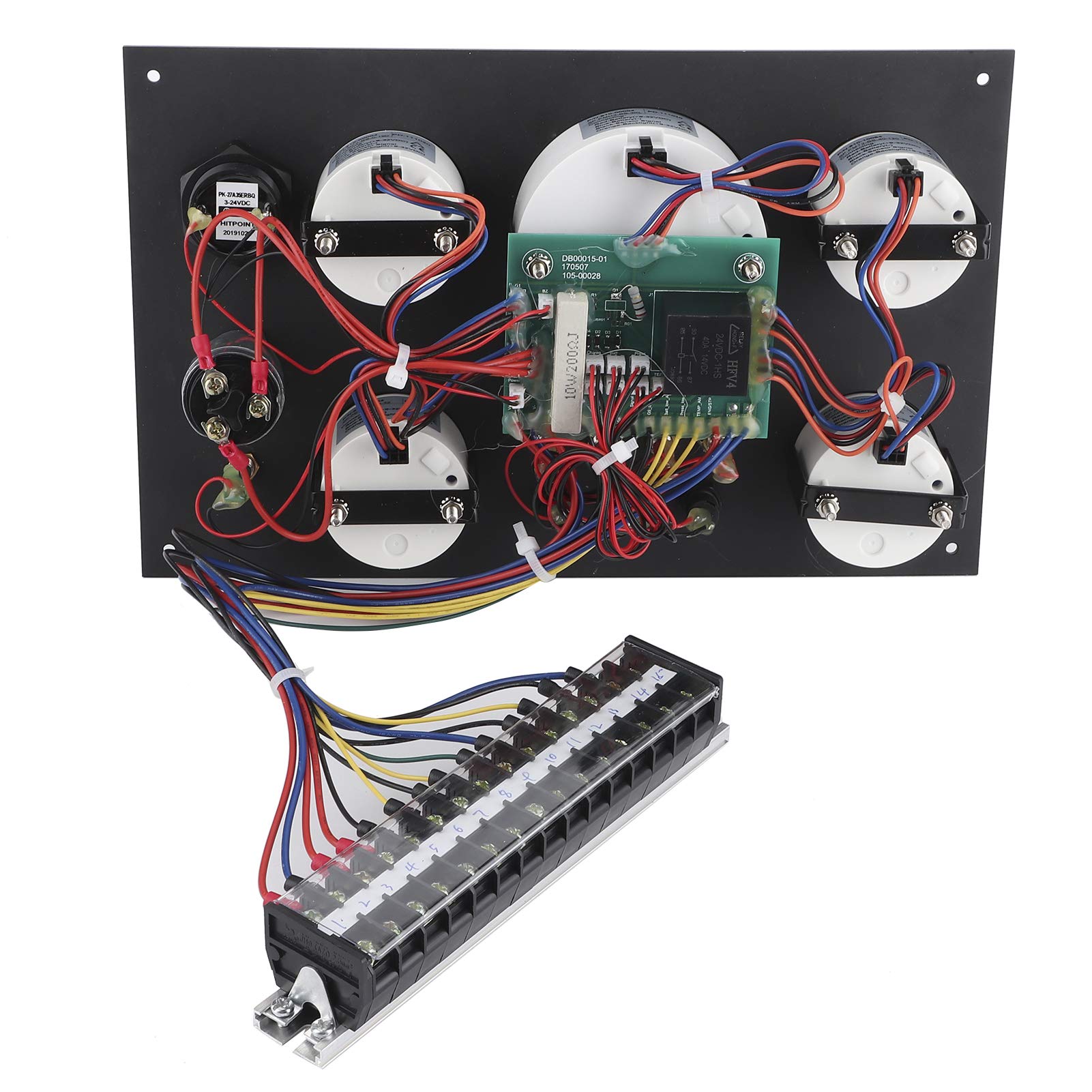

【IP67 WATERPROOF】This automotive gauge set features with IP67 waterproof (can work underwater 1m position) and dustproof. It adopts 316 stainless steel front cover, industrial‑grade electronic components and structural parts, which makes it can be used for a long time even in acid, alkali and humid environment. The wire harness connector has a buckle to ensure a firm connection between the instrument and the wire harness.

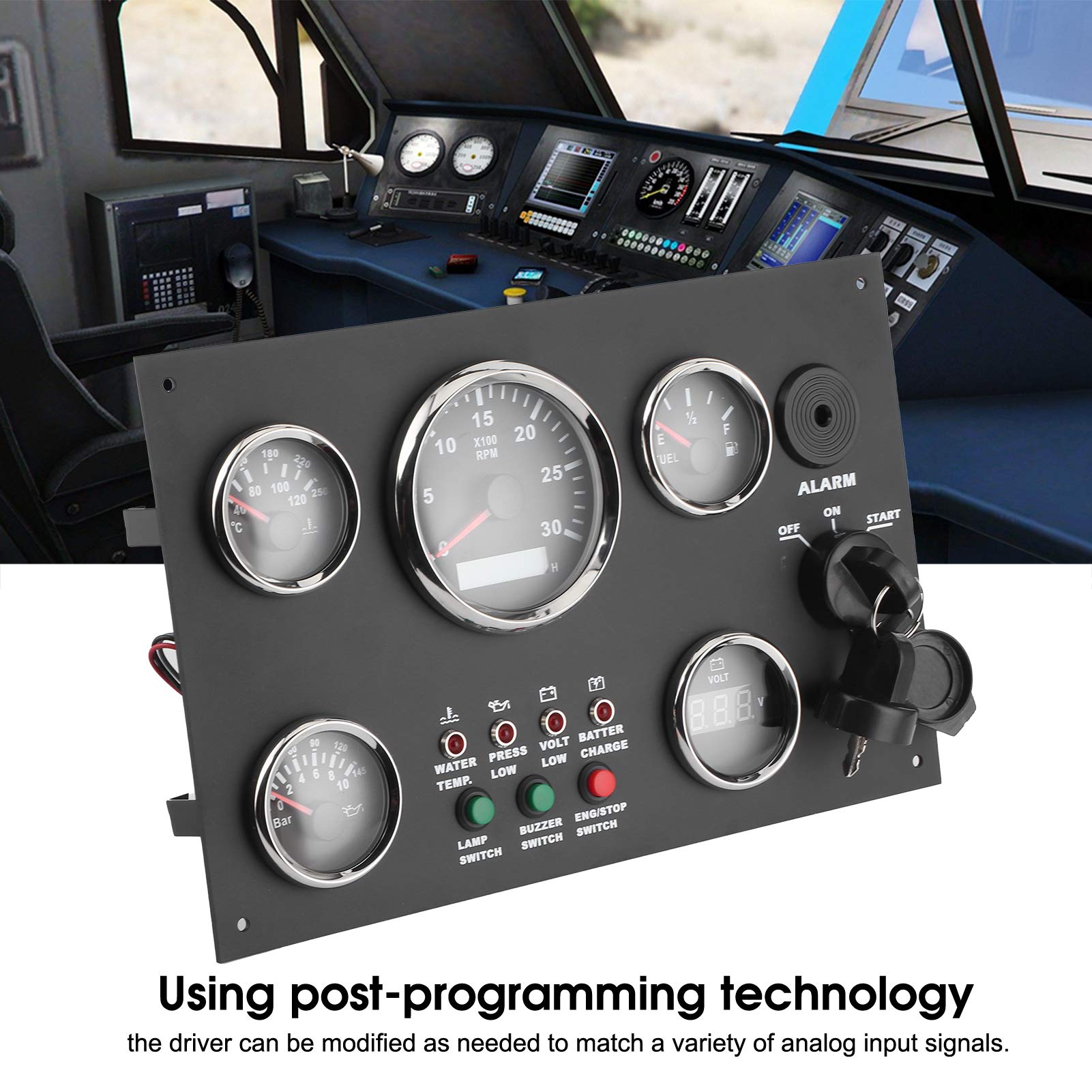

【WIDE COMPATIBILITY】This electric water temp gauge set adopts post‑programming technology, the driver can be modified as needed to match a variety of analog input signals. The input signal is pluse signal from tacho sensor, engine, ignition coil, crankshaft sensor, etc. And it adopts ultra‑wide working voltage design, 9‑32V long‑term working voltage, up to 36V (≤1 minute).
【100% QUALITY ASSURANCE】We are very confident in the quality of this instrument panel gauge cluster, and provide warranty or refund for it. Please feel free to reach us if you have any questions about your purchase. We will solve your problem within 24 hours.

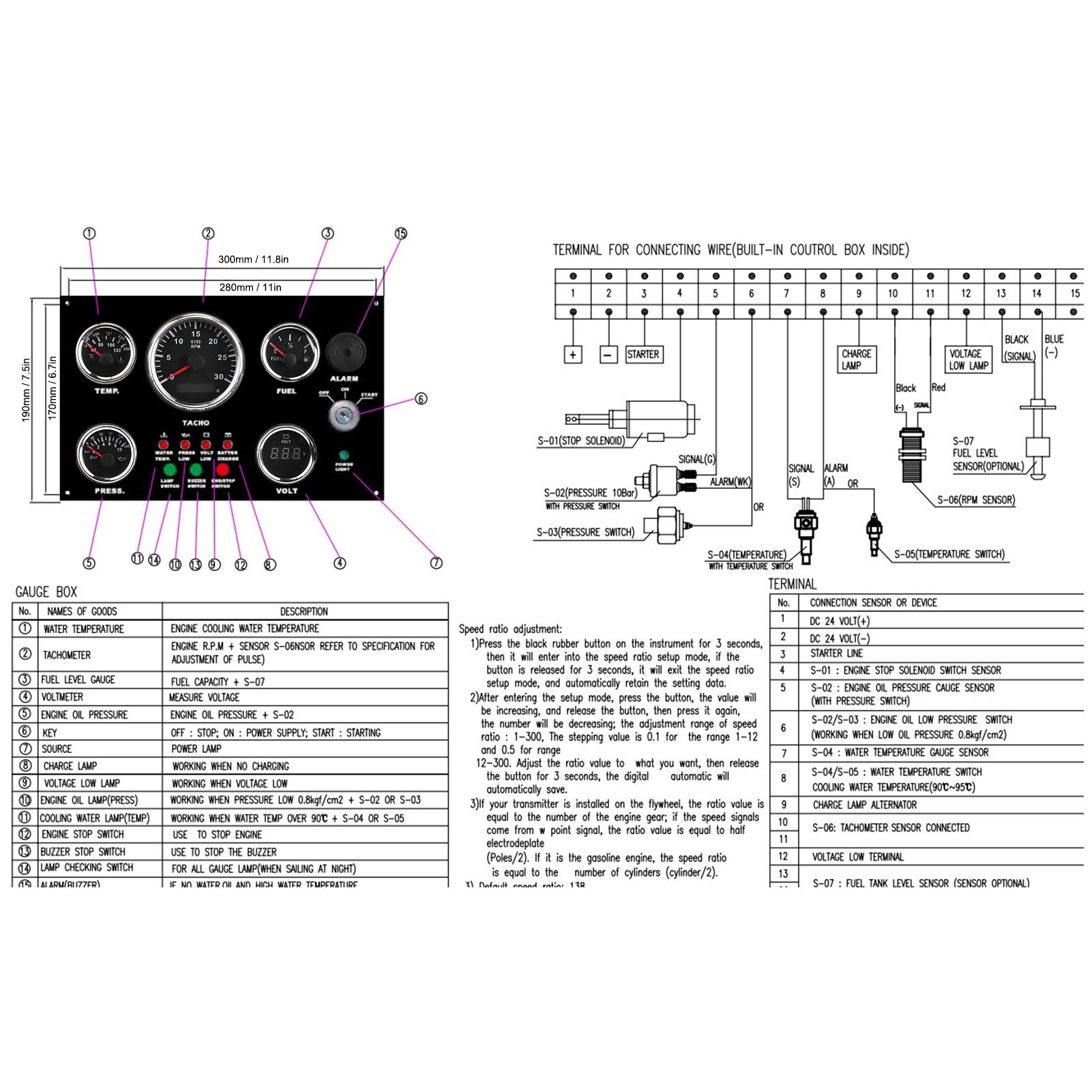

Ordered two for my catamaran. OEM replacement would have been 2000 bucks. So I gave it a shotI know a bit what I’m doing and had a set of schematics for the boat. It works as advertised. I adapted it to fit a diesel. Kept the original key, glow , plug stop relay and then cut the panel down to fitThe workmanship looks good and the tach dialed in nicely. The readings on the gauges were correct for the sensors on my boat . Your milage may vary here .The alarm buzzer and warning lights worked you need to make sure your engine has both oil and temp sensors for the gauges as well as switches for the warning light buzzerSo pleasantly surprised looks good works good and even has low battery and charge lights if your vehicle is so equipped Works great with a balmar 618 regulatorCan’t comment obviously on longevity or how it holds up in the elements but if you know what your doing, can read schematics and handle a multimeter it will work fine in many applications. Study the English version of the schematic someone posted here before you buy , it comes with a Chinese version . It is I think identical to other units on Amazon selling for twice the amount and English schematics can be found in that product literature as well.
