High-Performance Coolant Spray Pump System for CNC Lathe & Milling Machines - Large Capacity Self-Priming Cutting Coolant Sprayer for Water, Oil & Coolant - Ideal for Metalworking, Drilling & Industrial Cooling Applications

Product Description

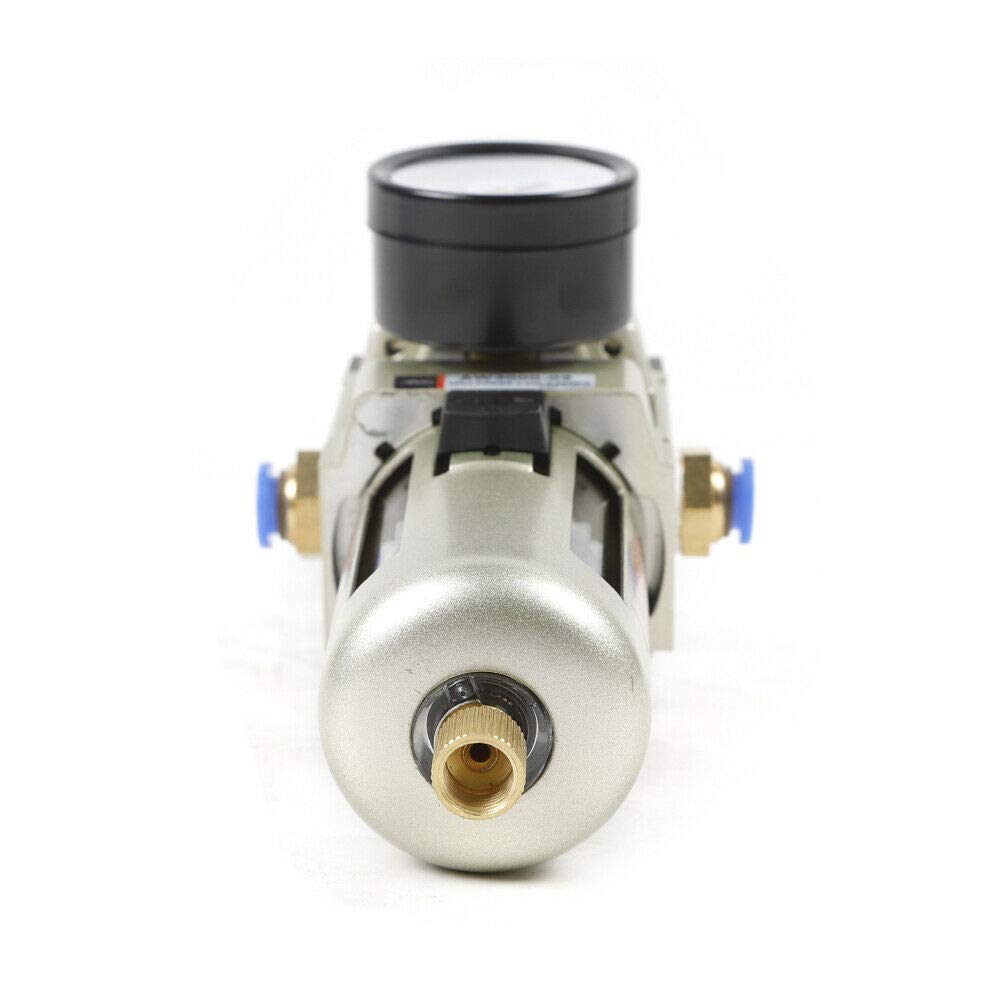

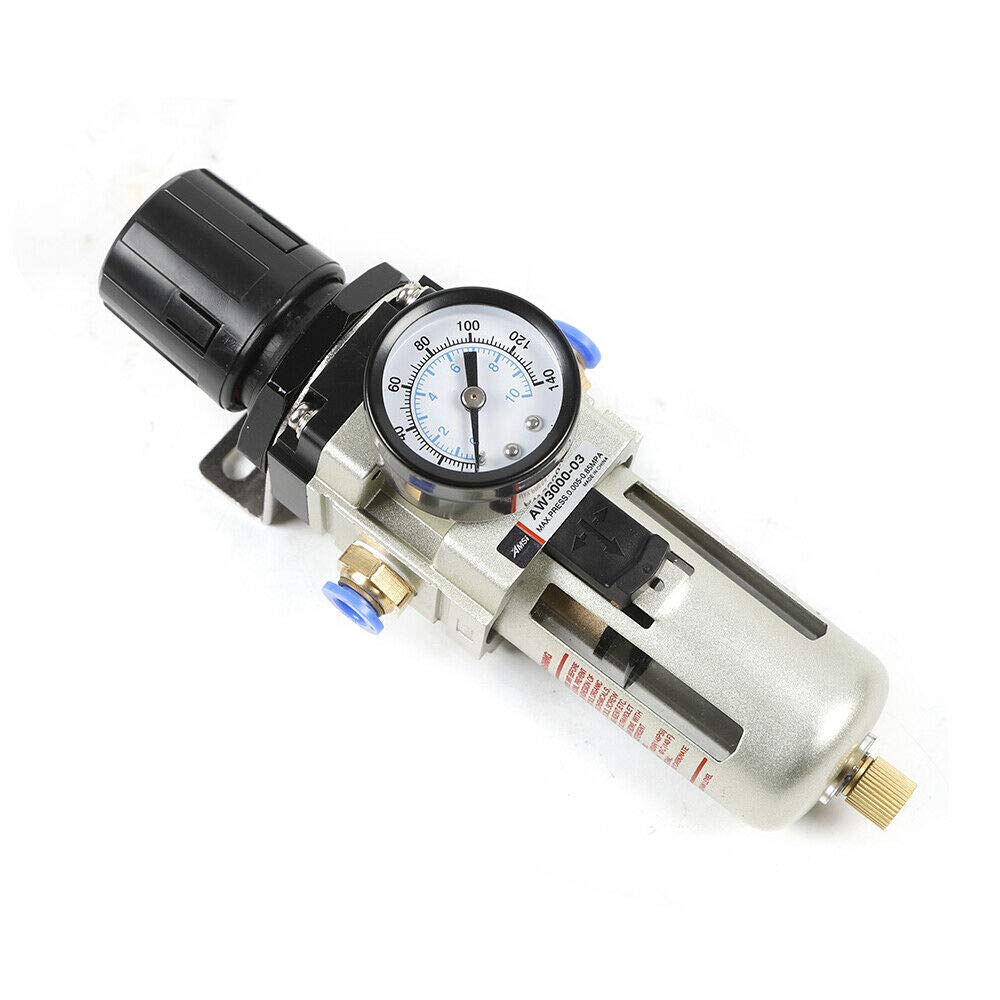

Customers need to prepare their own air compressor (air pressure 2KG-8kg) connection for use;How to use:1. The gas pipe of the air pump intakes air from the air inlet marked IN the air filter. Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.3. Machine tool PLC access to the solenoid valve coil, using PLC program to control the opening and closing of the solenoid valve. Solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve:The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.Product parameter：Size：tank：24.1*19.5*12.5cm（9.49*7.68*4.92inch）The electromagnetic valve：11.8cm（4.65in） air filter：19.5cm（7.68in）Weight：2.45kg（5.4lb）Material：Fuel tank: resin materialFuel tank cover: A3 ironSprayer, solenoid valve: aluminum alloyAir filter: iron shell + engineering plasticpacking list：Pneumatic cooling spray*2Solenoid valve*1Air filter*1
