1.6MPa Digital Pressure Gauge - M20x1.5 Thread Stainless Steel Sensor Meter with Lower Mount | Accurate Measurement for Gas, Water & Oil | Ideal for Industrial, HVAC & Hydraulic Systems

Product Description

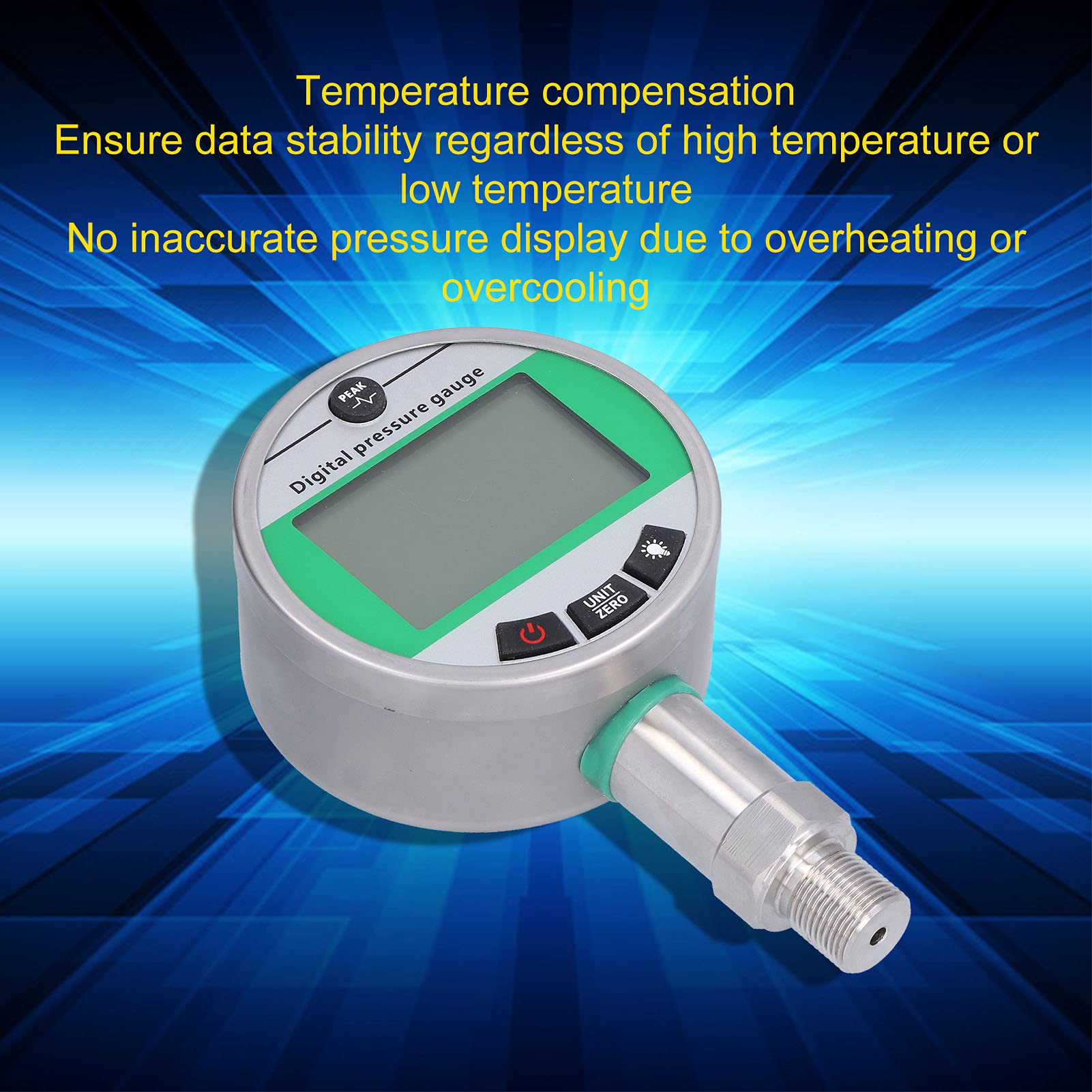

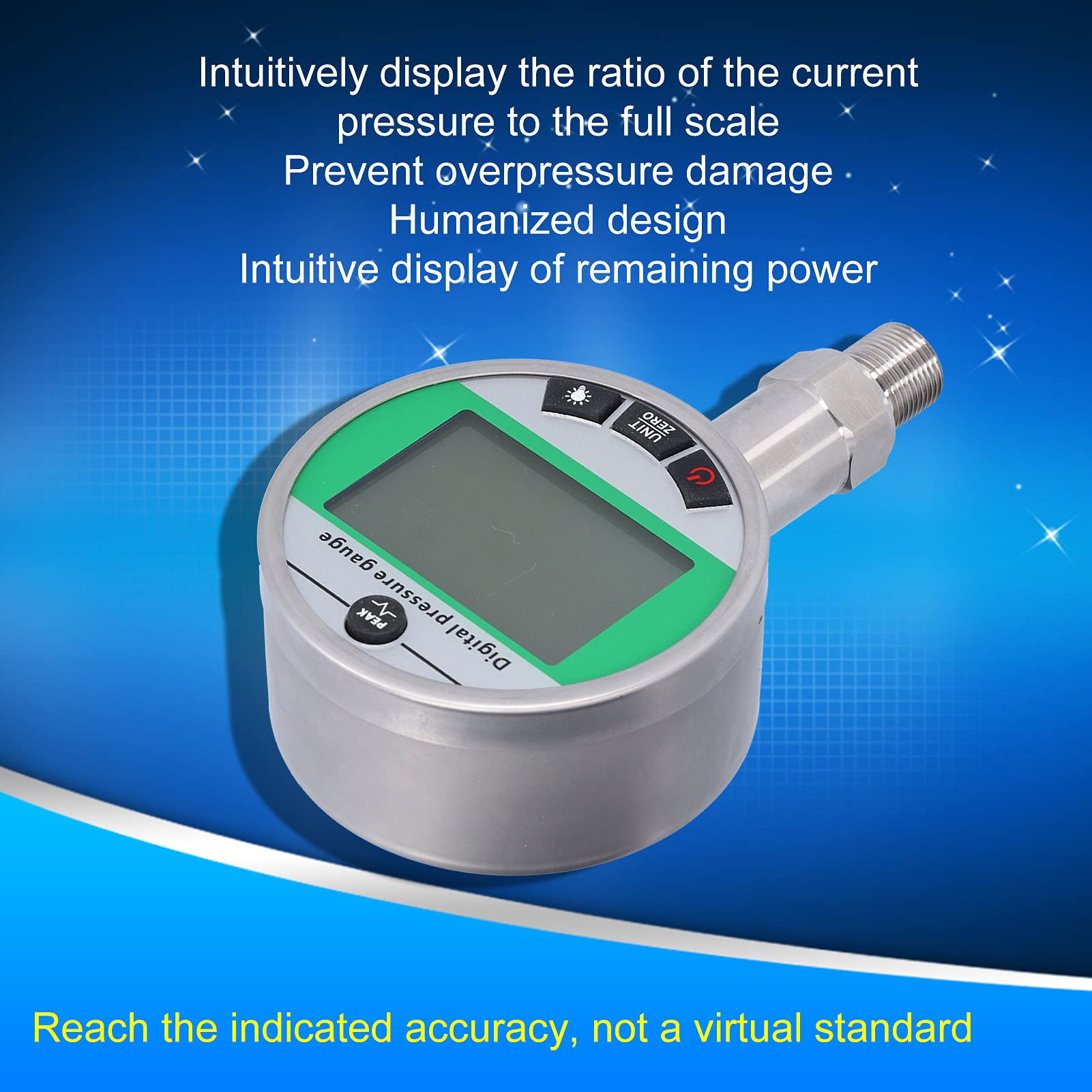

Feature:1. Prevent Overpressure Damage: Intuitively display the ratio of the current pressure to the full scale to prevent overpressure damage, up to 5 dynamic pressure display2. Intuitive Display Remaining Power: Digital hydraulic pressure gauge adopt humanized design, intuitive display of remaining power3. Real Accuracy: Accuracy can the indicated accuracy, not a virtual standard, very accurate4. Temperature Compensation: Support temperature compensation, regardless of high temperature or low temperature, can ensure the stability of the data, and there will be no inaccurate pressure display due to overheating or overcooling5. For Compatible Media: Stainless steel material is resistant, measuring medium includes water, gas and other compatible media with the end of the meterSpecification:Item Type: Digital Hydraulic Pressure GaugeModel: HG-1006XBInterface Material: Stainless steelInterface Thread: M20x1.5Diameter of Round Head of Display Meter: Approx. 100mm / 3.9inRange: 1.6MPAVoltage: 4.5VAccuracy: 0.4 levelDisplay Mode: Up to 5 dynamic pressure displayWorking Humidity: <80%RHOverload Pressure: 1.5xPower Supply: 3 x AA batteries 1.5V(not include)Pressure Type: Gauge pressure/absolute pressureResponse Time: <50msMeasuring Medium: Water, gas, etc. compatible with the end of the meterMedium Temperature: -20-80℃Package List:1 x Digital Hydraulic Pressure GaugeNote:1. Use after clearing. The product may show a little pressure display due to the difference of atmospheric pressure in different places and the stress after installation. Please clear it before use (make sure that the instrument is not under pressure when clearing).2. Do not pry on the sensor. This product has a built in pressure sensor. It is an accurate device. Please do not disassemble it by yourself, let alone probe or touch
