SKU:51177102

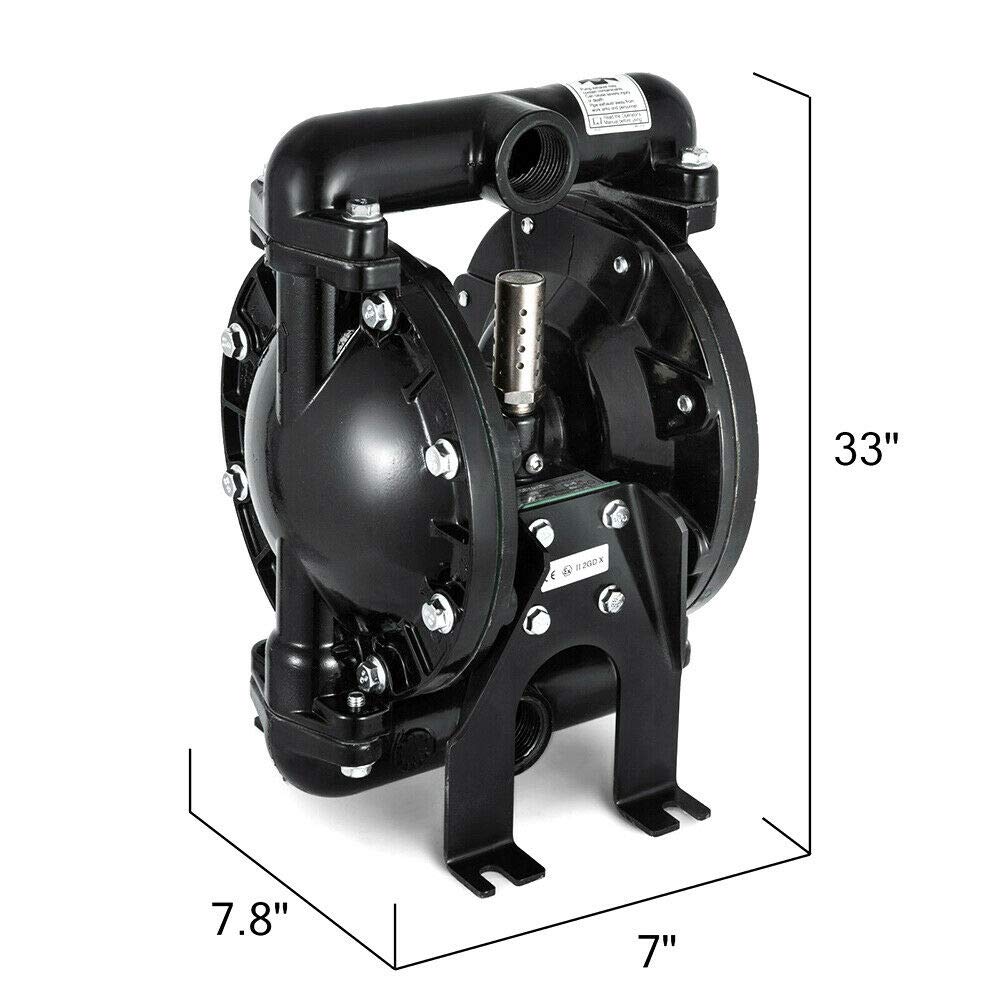

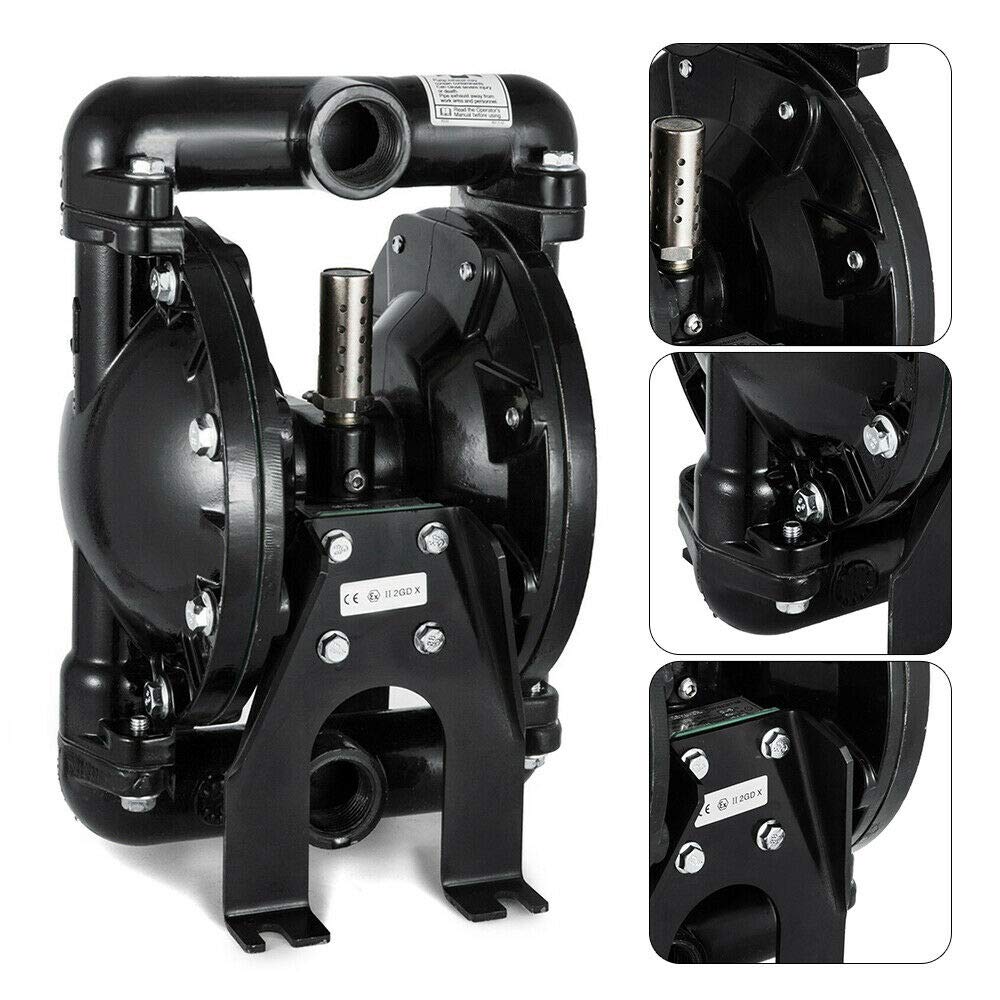

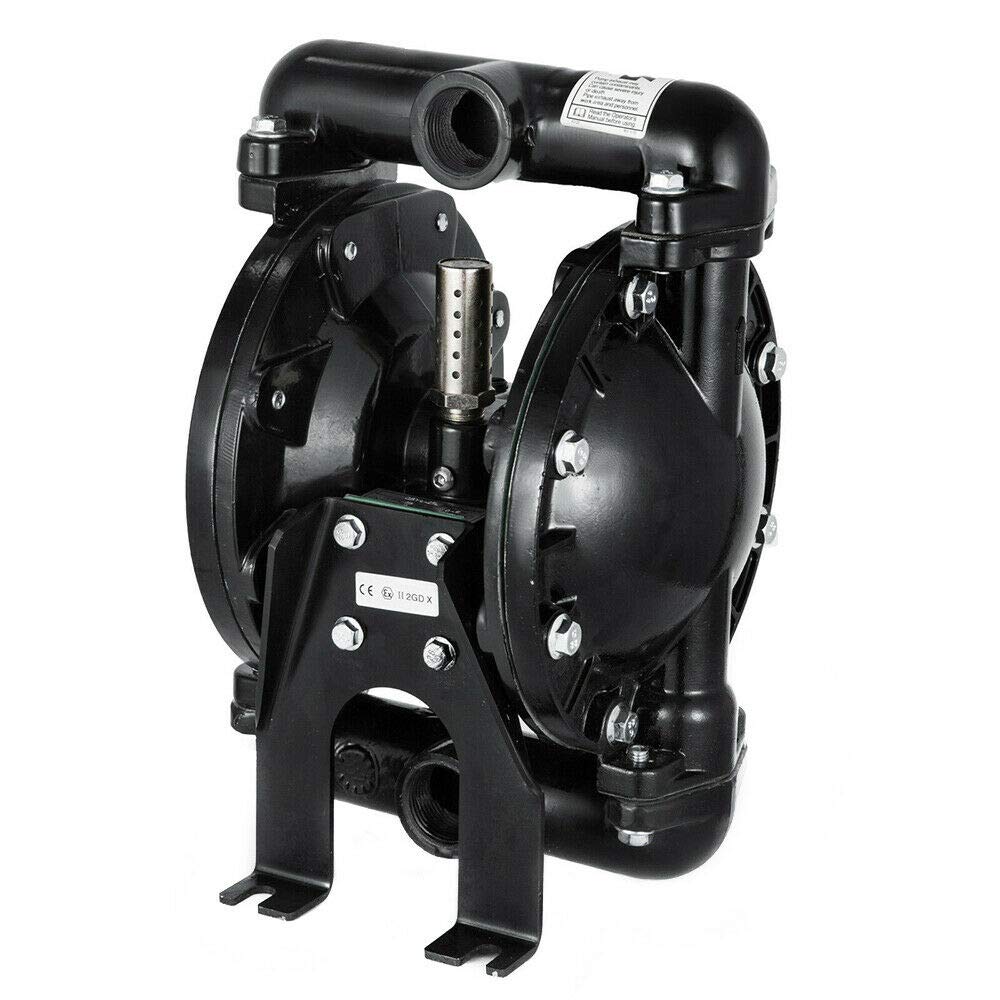

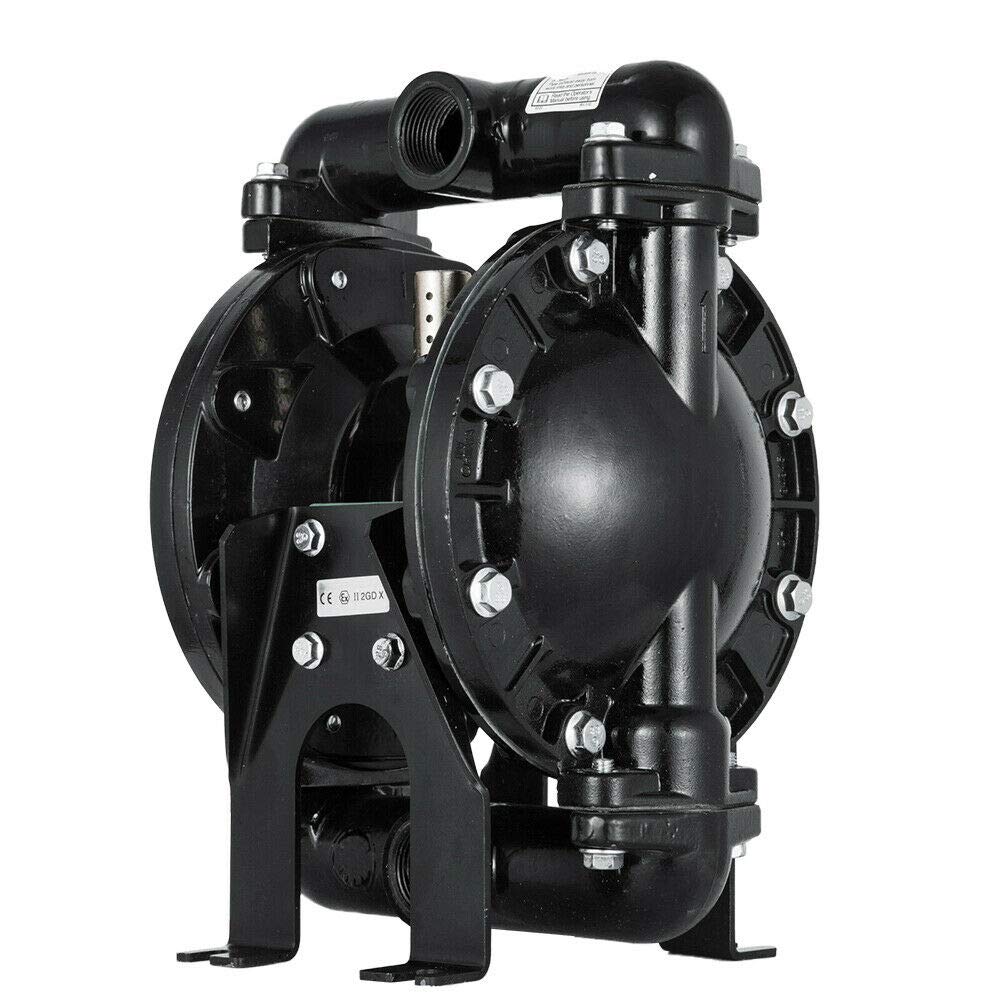

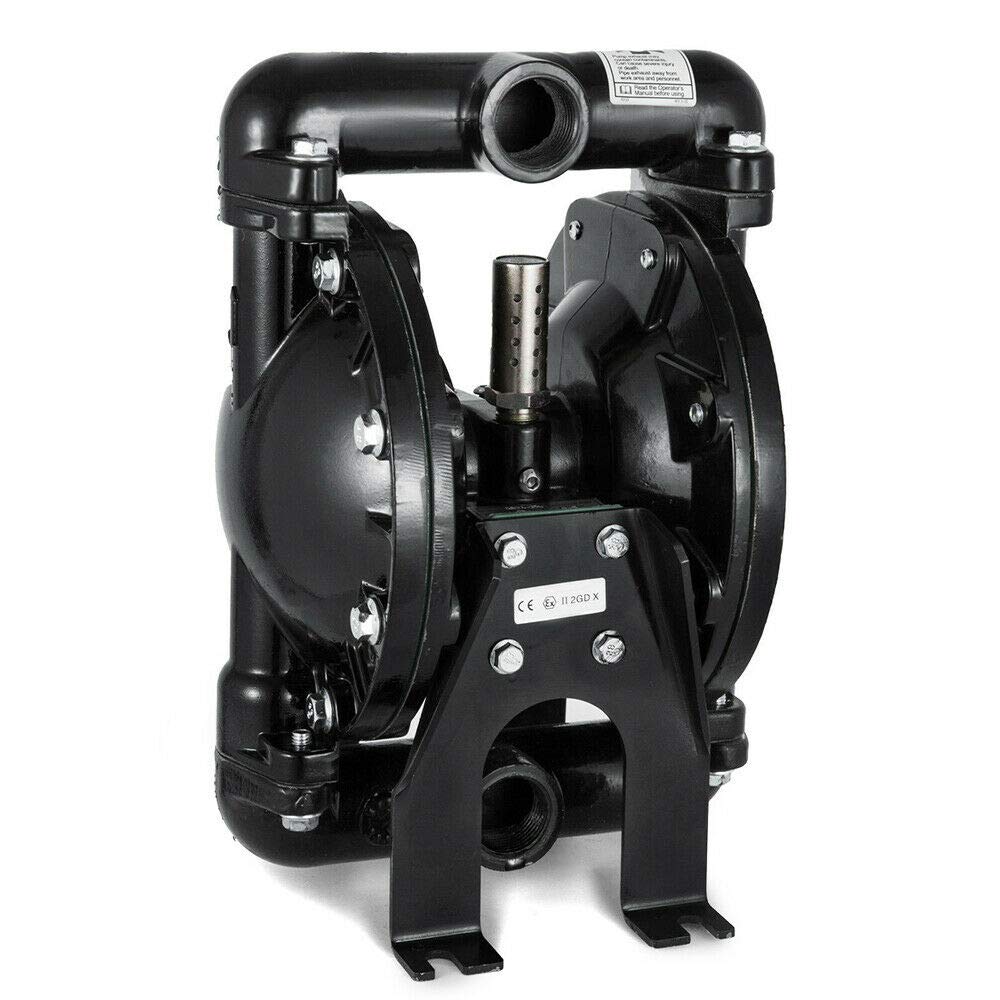

Warning!Can not use for corrosive liquid.Feature1.Brand new with top quality2.Air-operated double diaphragm pump3.With 1 inch inlet and outlet4.1/2 Inch air inlet5.1/8 Inch max diameter suspended solids6.Perfect for use with water7.Ideal for use with low viscosity petroleum fluids8.Solid construction9.Two years warrantySpecificationsProduct: Diaphragm pumpType: Double diaphragmOperation Type: Air-operatedModel: QBY4-25LBody Material: AluminumInlet Port: 1 inch (25 mm)Outlet Port: 1 inch (25 mm)Air Inlet Size: NPT 1/2 inch (12.7 mm)Average Air Consumption: 38 CFMMax Flow Rate: 9 m3/h (35 GPM)Suction: 0-5 m (0-16.4 ft)Max Suspended Solids: 3 mm (1/8 inch)Max Head: 84 m (275.59 ft)Max PSI: 120 psiMax Temp.: 150 ℉Self-Priming Dry: 3 m (10 ft)Self-Priming Wet: 4.6 m (15 ft)Manifold Connection: SingleValve Type: BallBall Material: AcetalCheck Seat Material: PolypropyleneDiaphragm Material: NitrilePackage Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch)Gross Weight: 9.86 kg (21.74 lbs)Package Content1 x Air-Operated Double Diaphragm Pump1 x Product Manual
INTRODUCTIONA diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid.
EFFICIENTThis powerful air-operated double diaphragm pump QBY4-25L features a 1in inlet and 1in outlet capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F.
PRACTICAL AND CONVENIENT The pump is simple in structure, easy to install and maintain, and comes with a product manual, which makes it more convenient for you to use.
APPLICATIONPerfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
GUARANTEE Guarantee the quality is the basic rule.DETAIKENA is dedicated to providing quality products
