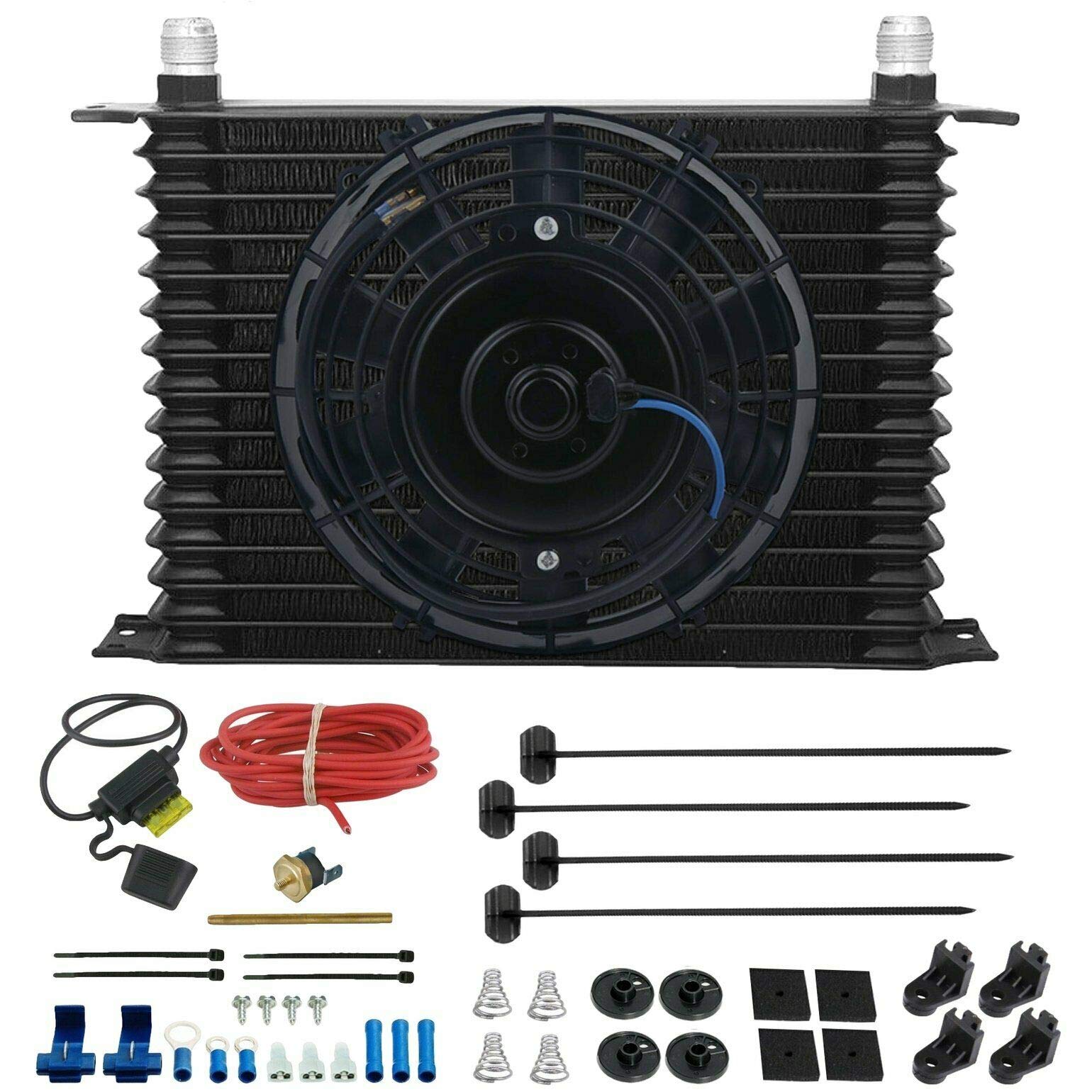

15 Row Transmission Oil Cooler with 8" Fan, Push-in Probe & 180°F Thermostat Switch - Heavy Duty Cooling for Trucks, RVs, and Performance Vehicles

Product Description

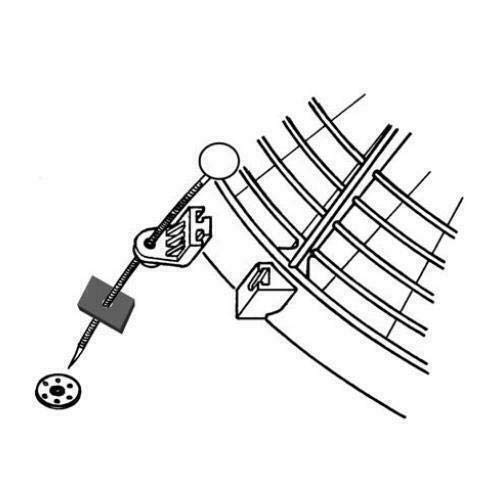

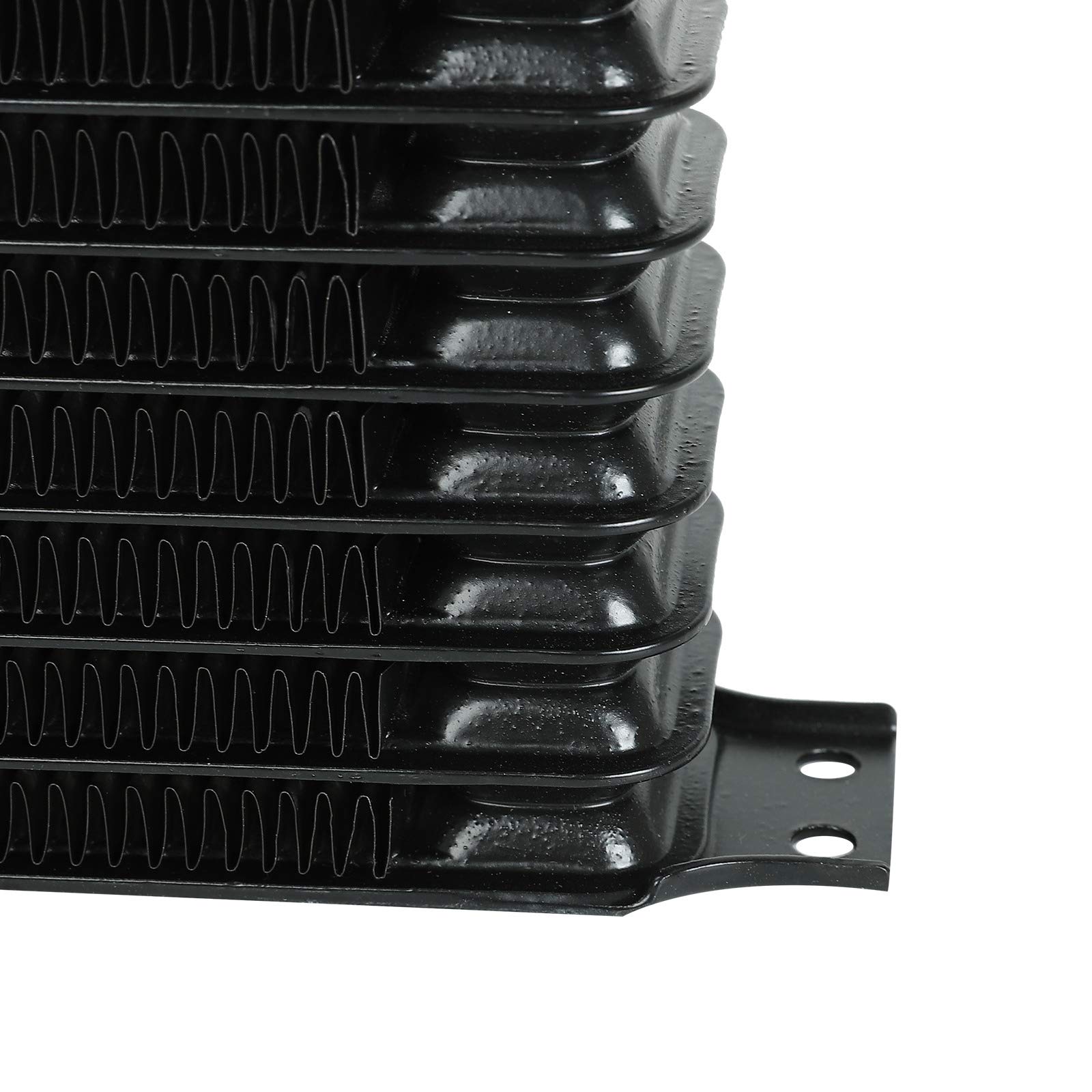

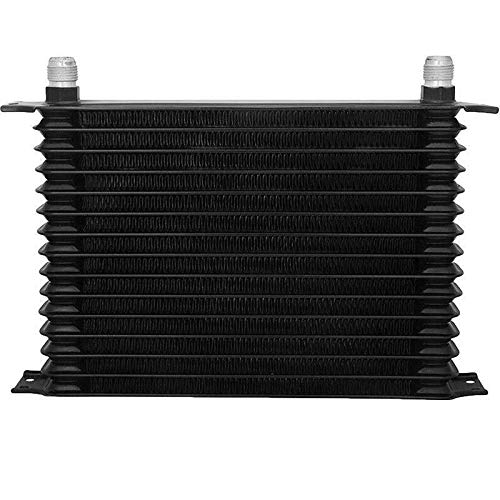

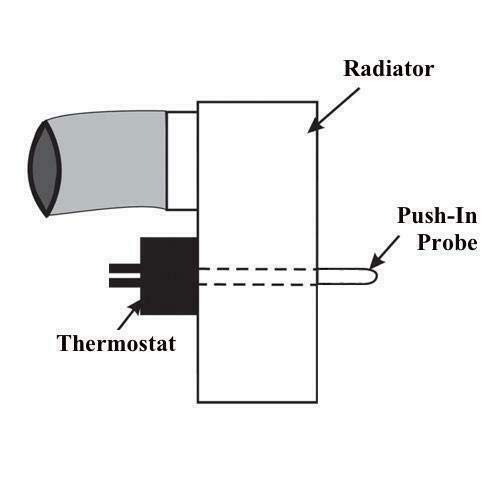

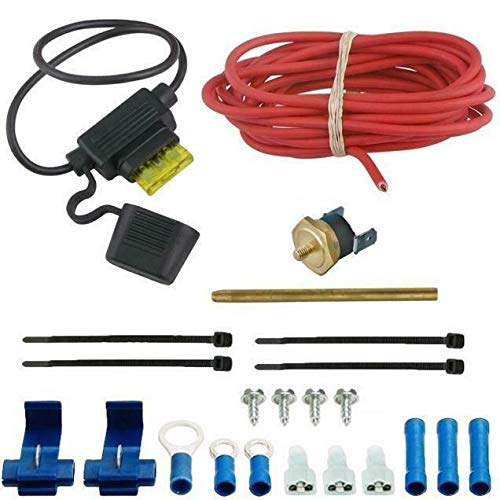

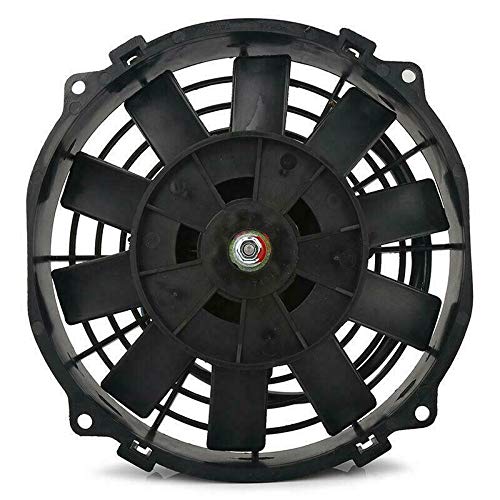

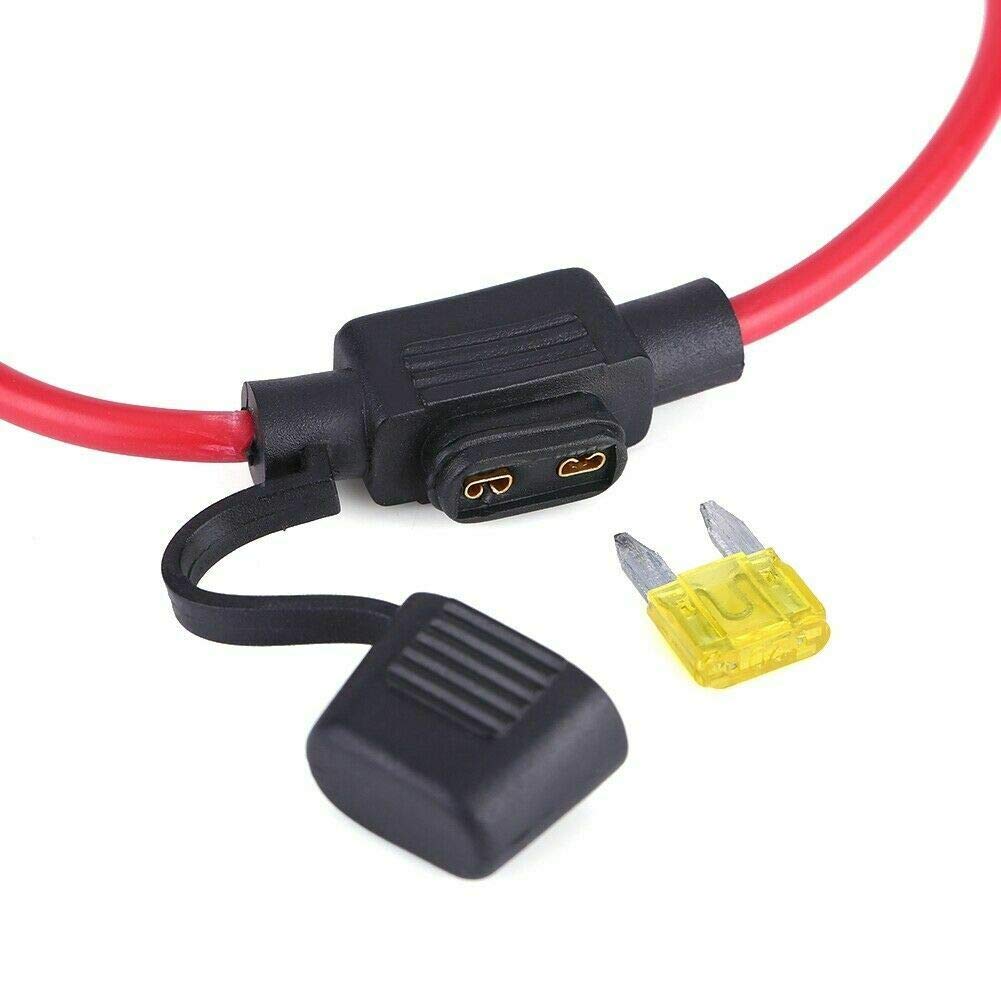

Fluid Cooler:Universal 15 row plate and fin aluminum heavy duty transmission cooler kit.Extend transmission life by helping prevent heat-related transmission failures.Perfect for light to medium duty car, truck or SUV use with occasional towing.1 1/4" wide plates and embossed turbulators, which maximize heat transfer.Dimensions: 2" x 9.4" x 13.4" with 10AN hose fittings and GVW 22000 lbs.Electric Fan:Universal 12 volt high performance 8" inch small electric cooling fan.Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.Configured as an air puller to be on the inside and pull air through.Includes mounting bracket feet and complete install fin tie strap kit.Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.Wiring Kit:Universal electric fan or automotive accessory wire harness kit.Safely powers one 12 volt fan or auto accessory without splicing.Maximum 20 amp continuous draw with in-line fuse protection.Standard 7 feet of 14AWG size wiring allows mounting flexibility.Installation instructions and all pictured components included.Thermostat:Universal dual pin electric cooling fan powering thermostat switch.Solid brass push-in fin probe temperature sensor can be cut to size.Preset to power fan at 180'F turn-on and 165'F turn-off temperature.Probe pins the switch to radiator, engine or transmission cooler fins.Measures temp of auto liquids including oil, water and coolant fluid.
