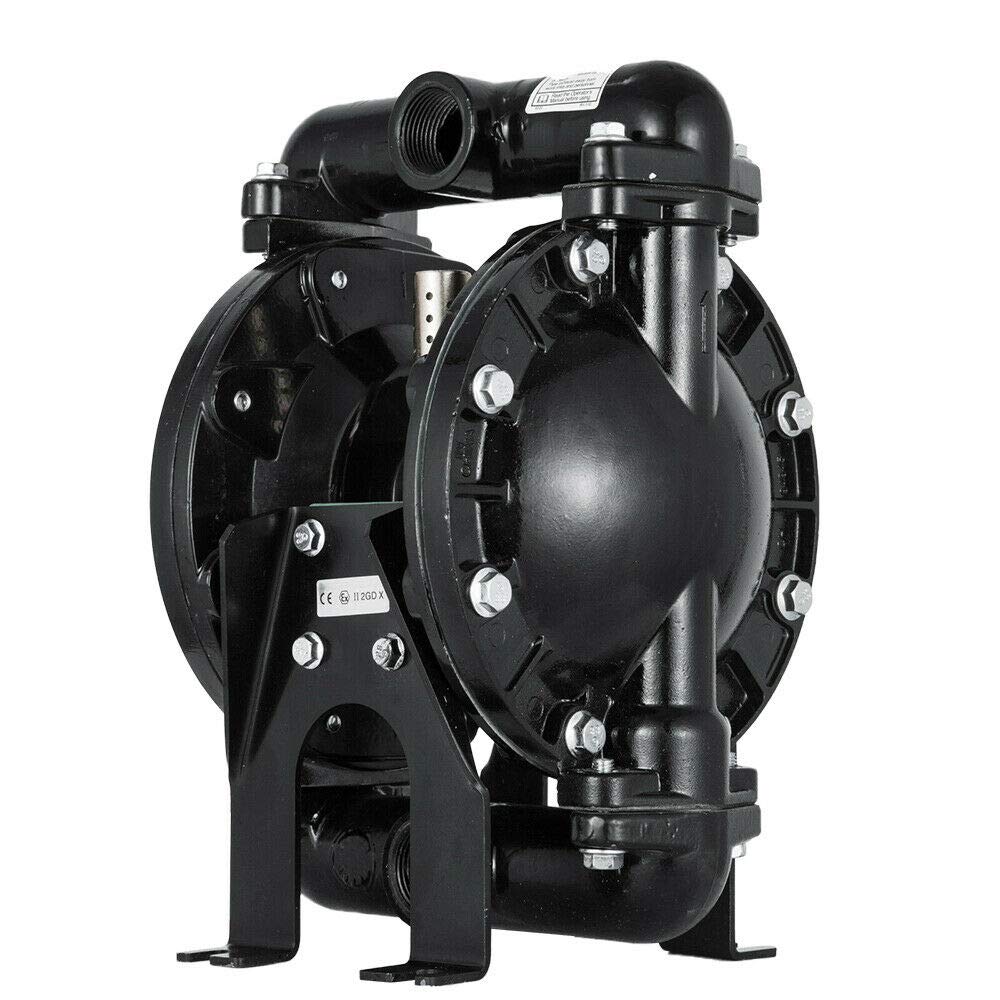

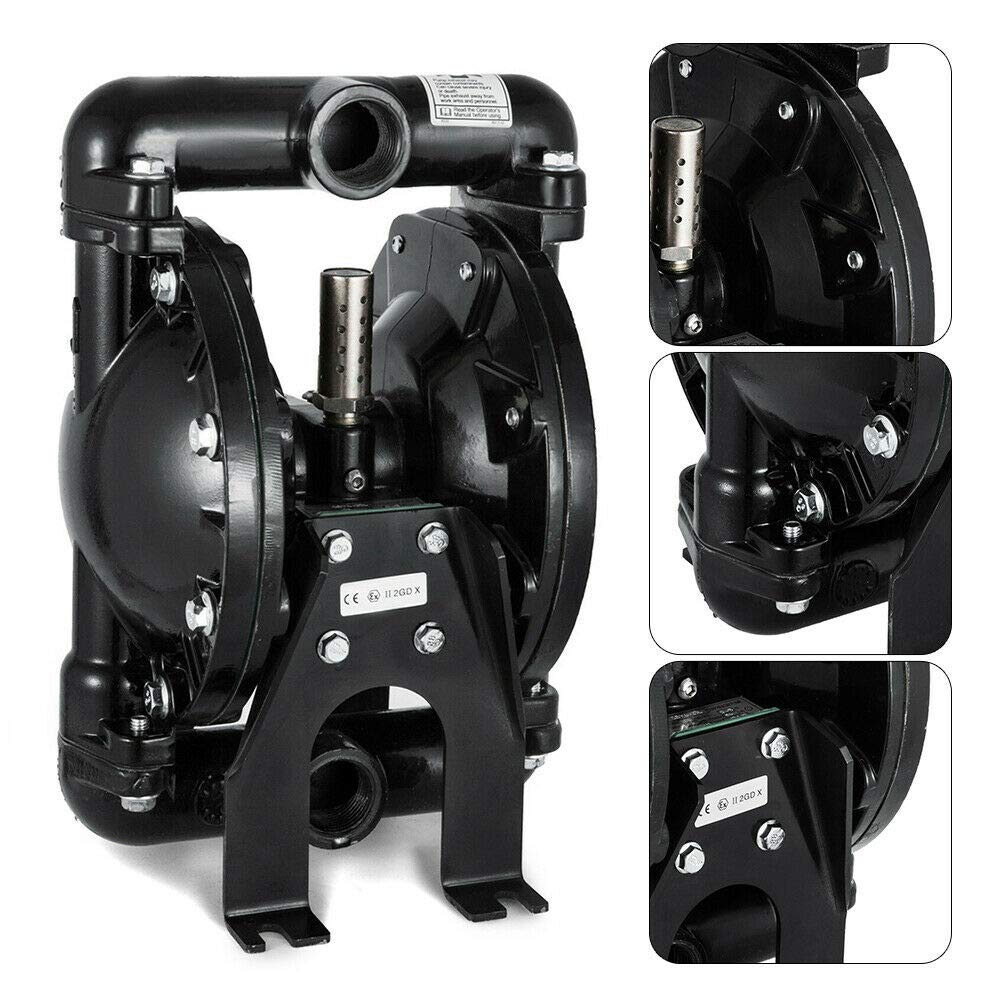

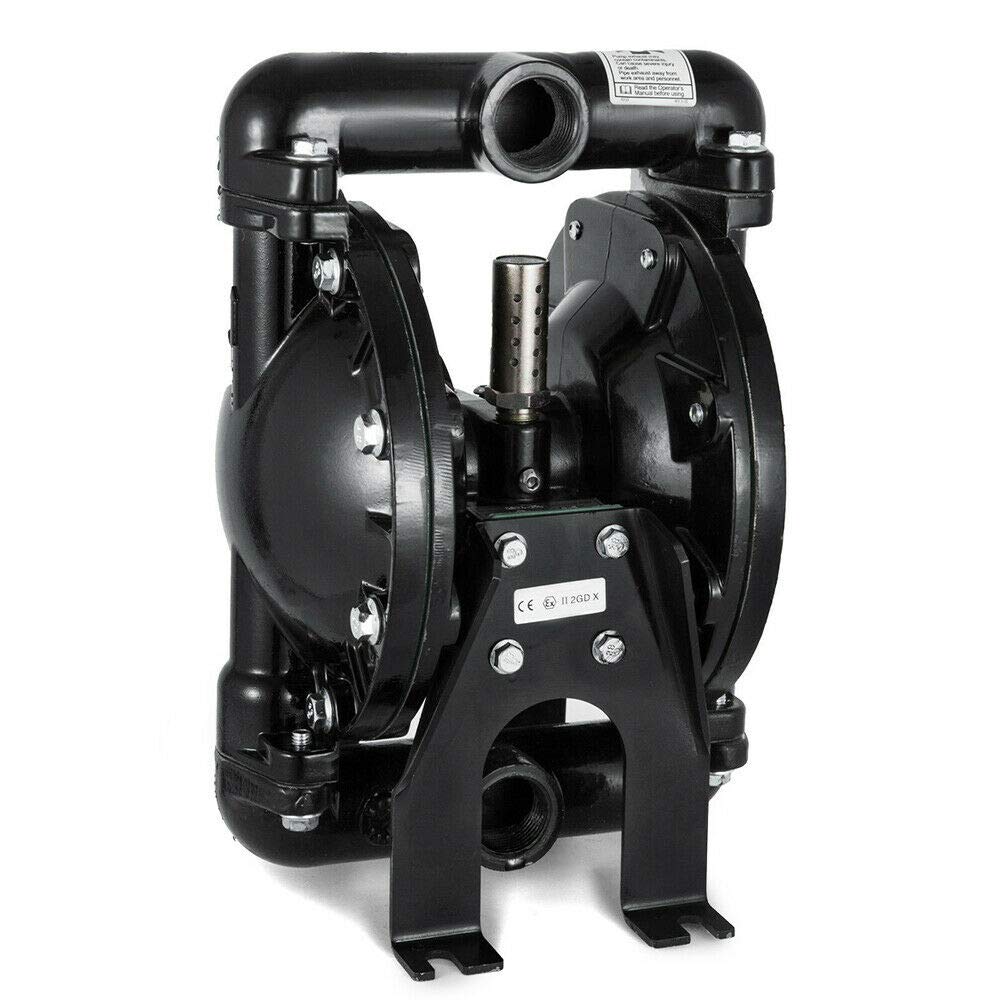

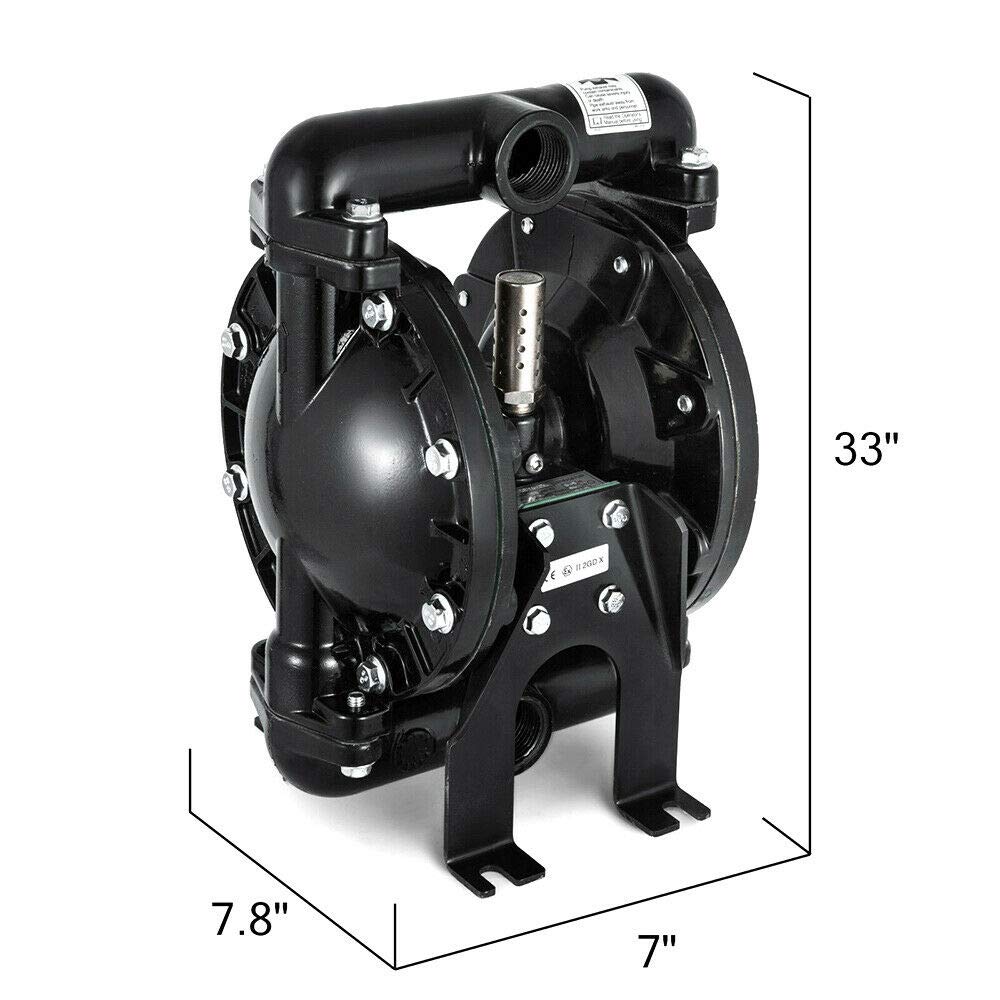

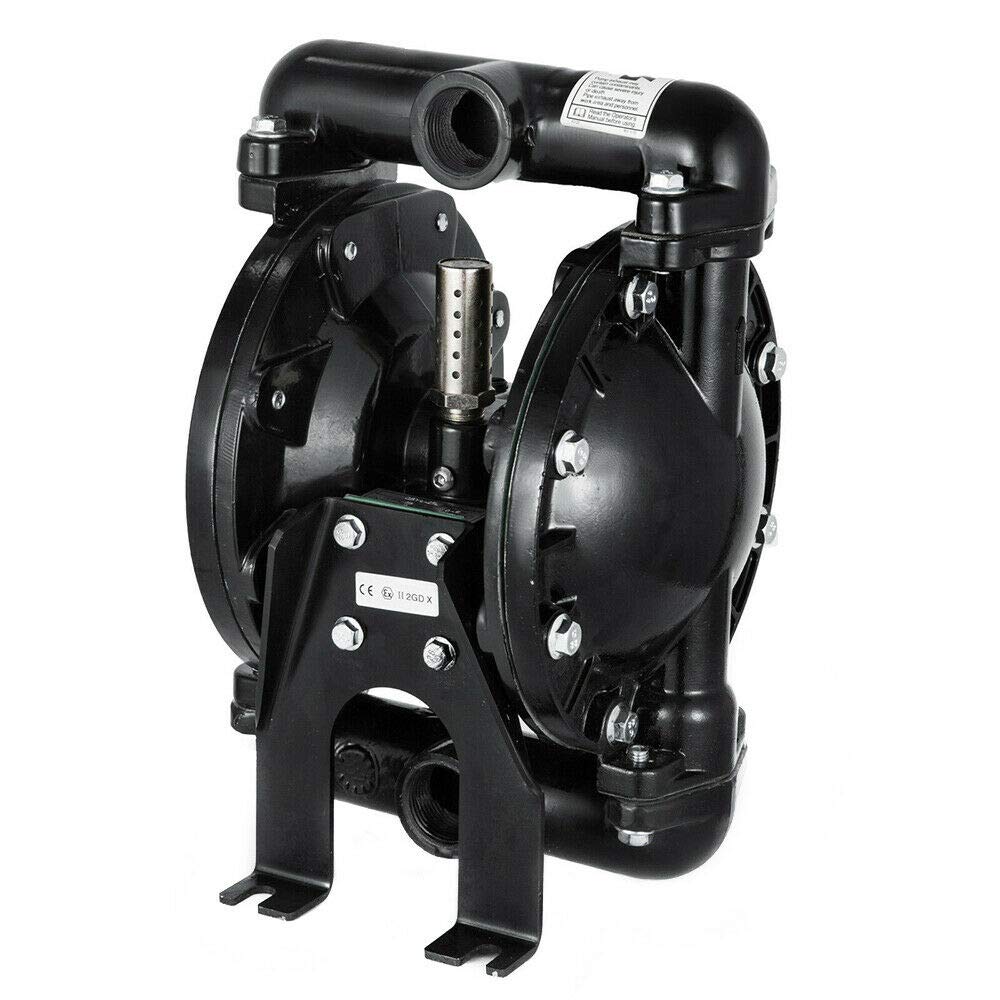

Product DescriptionWarning!Can not use for corrosive liquid.Working Principle:In the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one.Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.Feature:Perfect for use with waterIdeal for use with low viscosity petroleum fluidsSolid constructionSpecifications:Product: Diaphragm pumpType: Double diaphragmOperation Type: Air-operatedModel: QBY4-25LBody Material: AluminumInlet Port: 1 inch (25 mm)Outlet Port: 1 inch (25 mm)Air Inlet Size: NPT 1/2 inch (12.7 mm)Average Air Consumption: 38 CFMMax Flow Rate: 9 m3/h (35 GPM)Suction: 0-5 m (0-16.4 ft)Max Suspended Solids: 3 mm (1/8 inch)Max Head: 84 m (275.59 ft)Max PSI: 120 psiMax Temp.: 150 ℉Self-Priming Dry: 3 m (10 ft)Self-Priming Wet: 4.6 m (15 ft)Manifold Connection: SingleValve Type: BallBall Material: AcetalCheck Seat Material: PolypropyleneDiaphragm Material: NitrilePackage Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch)Gross Weight: 9.86 kg (21.74 lbs)Package Content:1 x Air-Operated Double Diaphragm Pump1 x Product Manual
【Air-operated Double Diaphragm Pump】A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid
【High functionality】Maximum pressure of 120PSI with 1-inch inlet/outlets and an air inlet of 1/2-inch; maximum suction height of 16 feet and a maximum head of 275 feet; Max Flow Rate 35 GPM
【Features】This air-operated double diaphragm pump is made of high quality aluminum, which has good abrasion resistance and heat resistance, durable and tough
【Application】Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil. This powerful and efficient air operated diaphragm pump is perfect for all your needs in every industry
