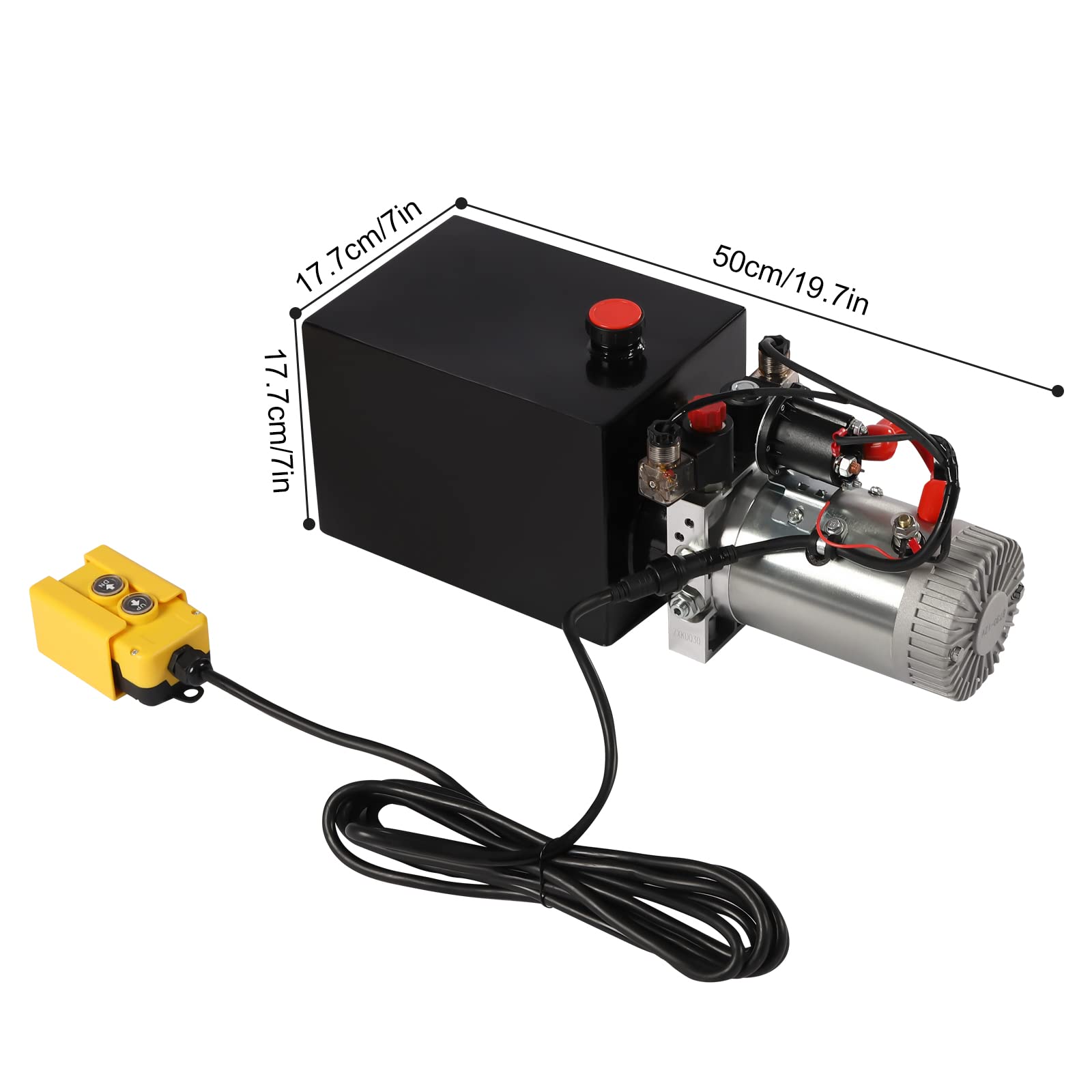

Description This hydraulic pump is made of solid steel, which is very durable and not easy to crack or damage. It is equipped with a 3kw powerful motor, with a release pressure of up to 16MPa, making it easy to handle various hydraulic lifting operations. As a power unit, it will be the ideal choice for all kinds of remote hydraulic systems! Package Included 1* Hydraulic Electric Pump 1* Connector 1* 4.5-meter Wired Control Handle 1* English User Manual Cord Length: 4.5m/14.76ft Release Pressure: 16MPa Recommended Hydraulic Oil: ISO VG22-46 (0 ℃ - 70 ℃): ISO VG15 (- 15 ℃ - 0 ℃) Tolerance Range of Power Supply Voltage: ± 10% Packing Size: 65*28*28cm/25.59*11.02*11.02in Product Size: 17.78*17.78*50cm/7*7*19.7in Gross Weight: 15kgkg/33.33lbs Specifications Material: Steel Color: Black, Silver Type: Horizontal Rated Speed: 2850R/MIN Internal Thread Model: m14 * 1.5 Connector Model Configured: 18 * 1.5 Connector Model Additionally Configured in the Package: 9/16''(SAE6) Power: 3KW Voltage: DC12V Tank Capacity: 7.57L/ 8Qt Remote Control It is equipped with a solid remote control with a 4.5m/14.76ft cable, which allows you to remotely operate the product. Press the button up and down, and it will stop when you release the button. High-quality Tank It has a metal fuel tank, which will not crack or leak even under harsh conditions, so you can use it with confidence. Its capacity is 20 quarts, avoiding frequent filling of hydraulic oil. Application It is suitable for electric forklift trucks, electric forklift trucks, tipper trucks, electric sanitation trucks cars, lifters, motorbike lifters, car tailboards, electric pallet trucks, lifting platforms, aerial work platforms, electric basketball hoists, boarding bridges, etc. Notes The hydraulic oil should be replaced upon working for 100 hours since the initial filling. Subsequently, the hydraulic oil should be replaced once per year/ about 1500 working hours.The power unit could not filter foreign materials within the hydraulic cylinder, therefore, the interior of the hydraulic cylinder must be kept clean to prevent the ill-function of the control valve. And the pipelines should also keep clean.The oil filling volume of the oil tank shall be 90% of the capacity, and the oil volume shall not be less than 85%. When starting the operating system for the first time, immediately check whether the oil in the oil tank is sufficient.Please note that the cleanliness level of hydraulic oil is ISO 4006 (: 99) 18/15 or NAS1638 9~10, and the product oil must pass 10-25 μm The oil filter truck can be used as working oil after filtering.
Stable and Efficient The hydraulic electric pump is equipped with a powerful 12V DC motor for stable performance and quick start-up. So, It can provide strong power for hydraulic systems such as car elevators and lifters to achieve short-term lifting, greatly improving working efficiency.
High Performance It is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.
Safety Protection It is equipped with an overflow valve, so it will automatically release when overpressure to avoid overpressure damage or excessive pressure, making it safe and reliable to use.

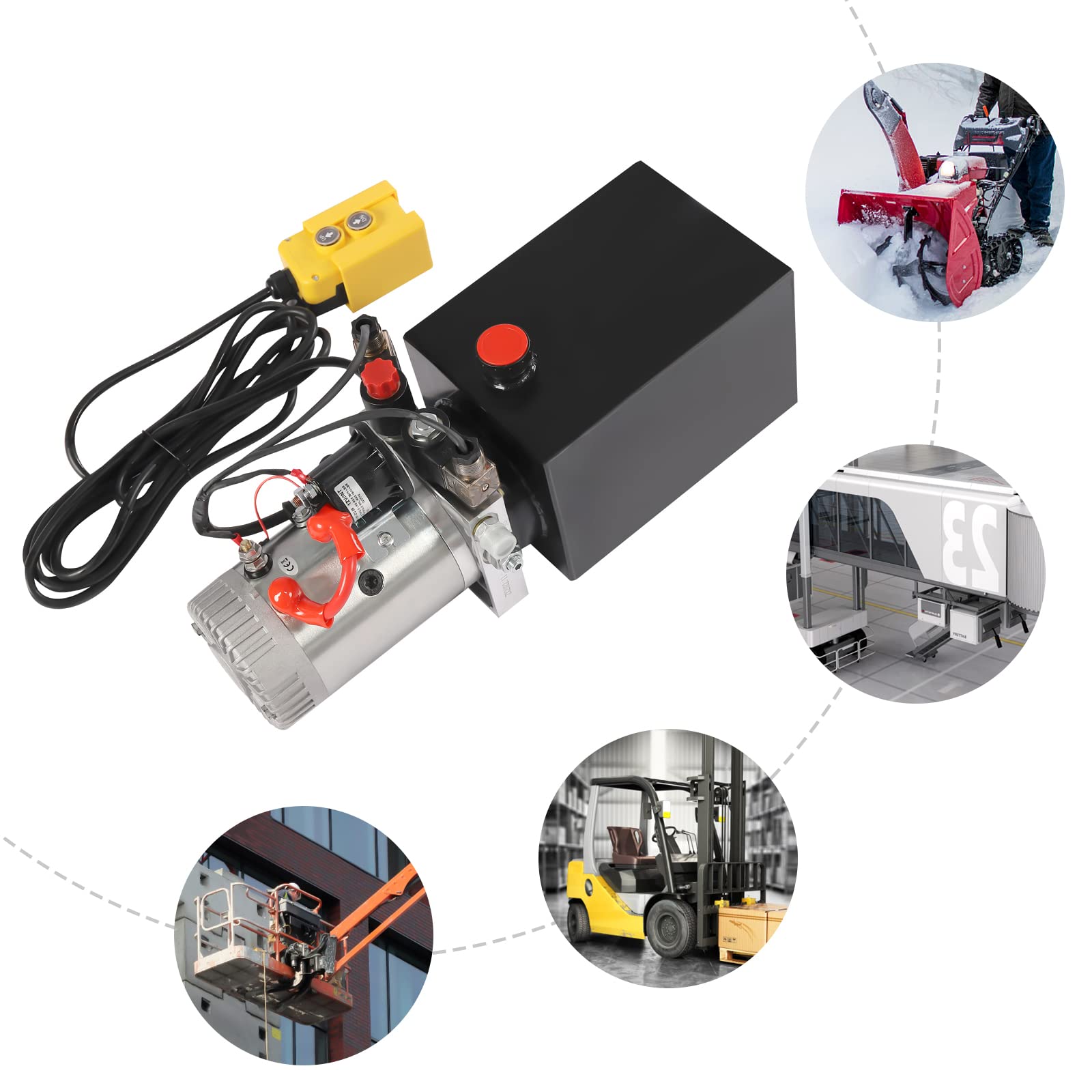

Compact and Lightweight It is compact and lightweight(31.96lbs), allowing it to be easily installed on electric basketball stands, snow sweepers, truck tailgates, etc. without being abrupt, and also making it easy to carry and move.
Easy to Use This hydraulic electric pump can be used directly after receiving without additional assembly requirements. At the same time, the English operating instructions are also provided in the package to facilitate your operation and installation.
Worked great on my dump truck trailer was easy to use and got me back on the road quick. This hydraulic pump has been working very well for a while now and never any issues!
