6 Gauge Set - Speedometer, Tachometer, Fuel Level, Oil Pressure, Volt & Water Temp Gauges | Universal Programmable Dashboard Instruments for Cars, Trucks, Boats & Yachts (Black Background) | Perfect for Performance Monitoring & Vehicle Customization

Product Description

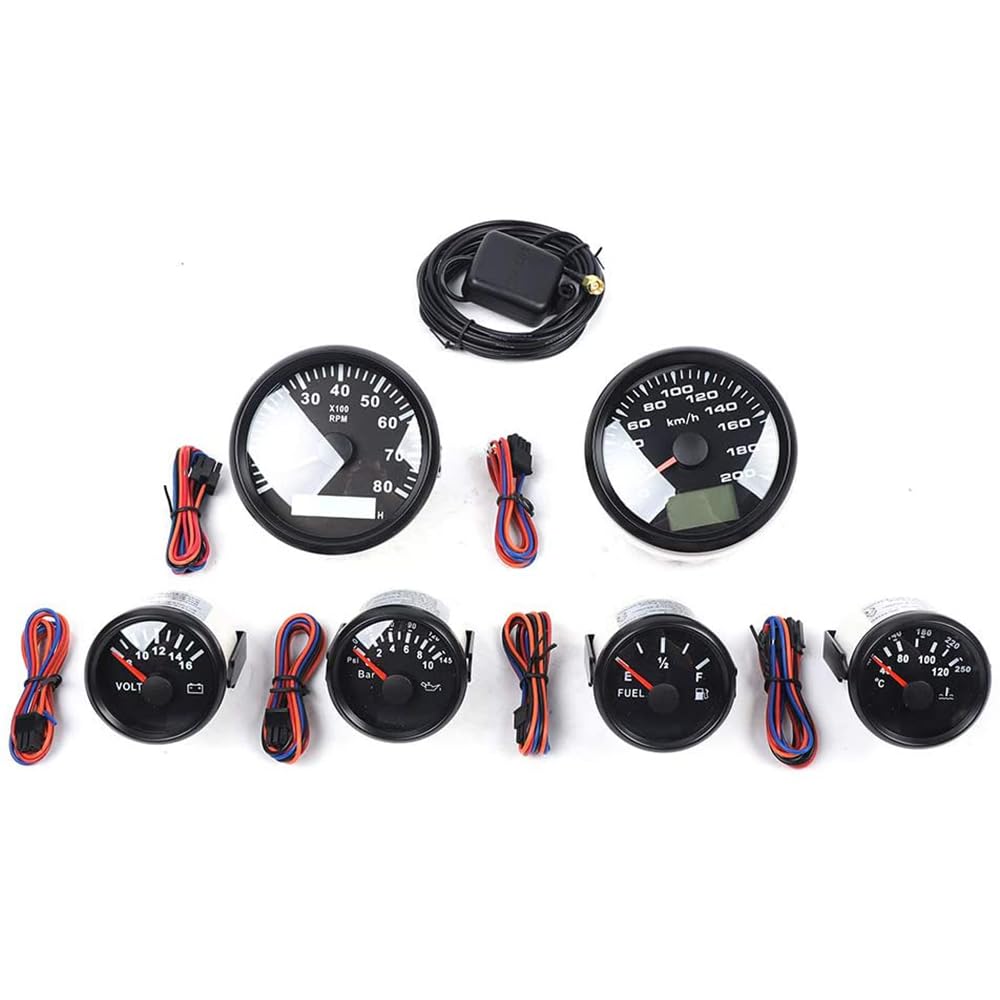

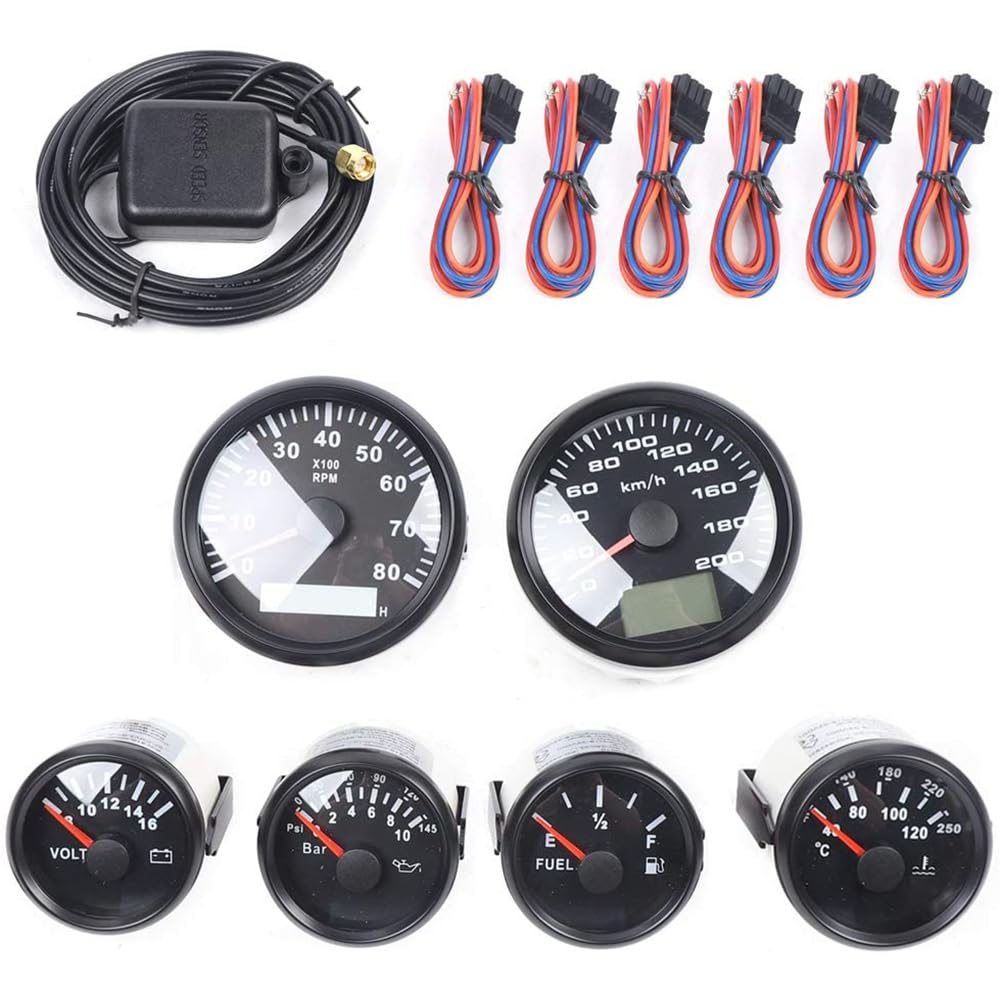

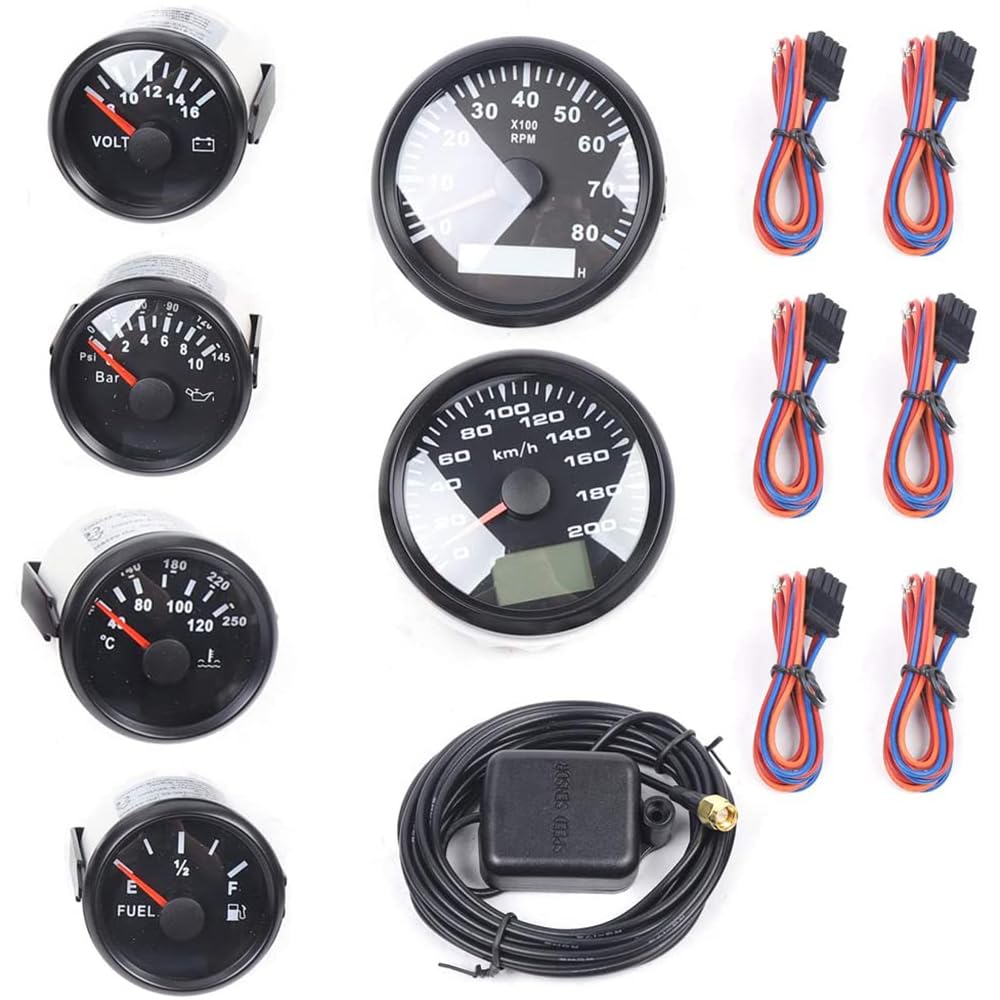

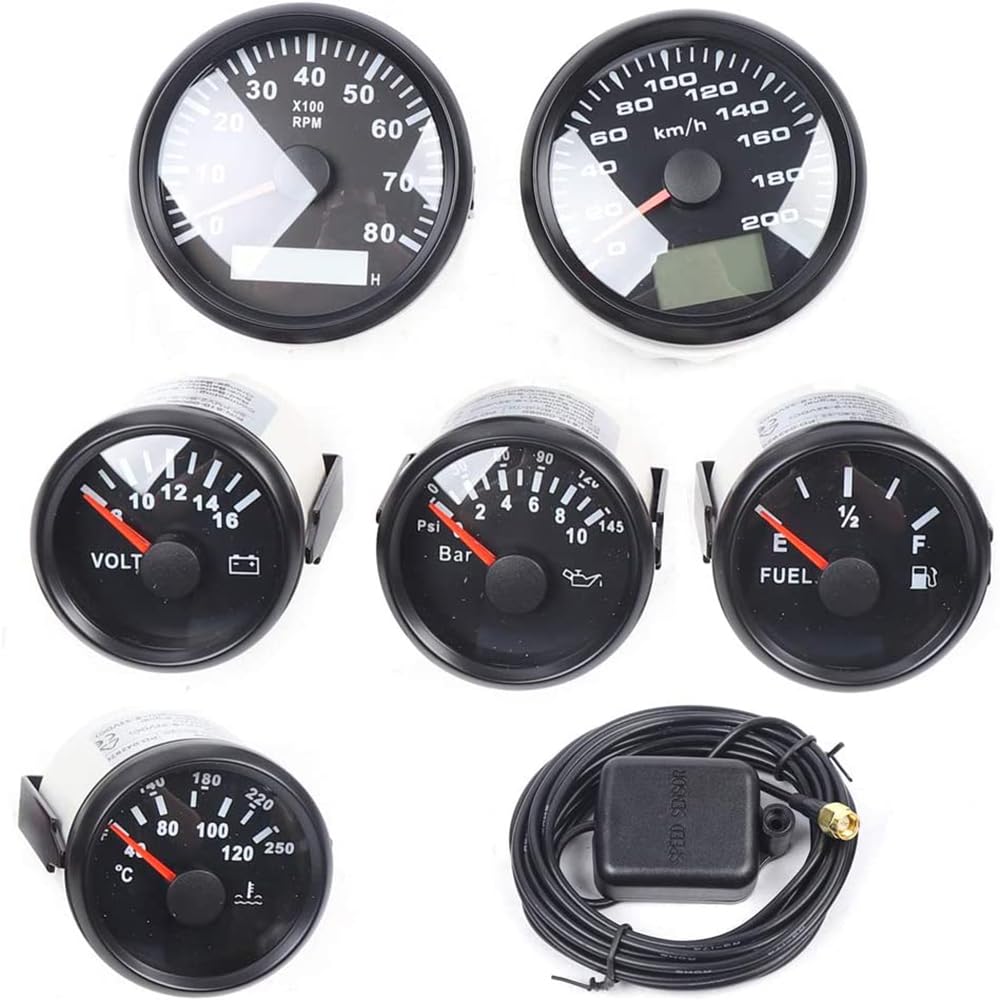

Black 6 Gauge Set -Speedo, 8000RPM Tacho, Fuel Level, Volts, Oil Pressure, Water TempThis instrument kit is used to install instruments for vehicles, trucks, motor boats, yachts and other vehicles.Good quality, can be replaced directly after purchase.Product parameters:Fixing hole size: 52mm (2")Operation mode: LCD display, stepping motor.Speedometer:Application: motorcycle, truck, boat (the driving distance cannot be reset, just like on a car, and the mileage will continue to increase).Working voltage: 9-32VFixed size: 85mm (about 3-3/8 inches)Operation mode: LCD display with 7-color backlightIndication range: 0-200KM / HSignal: GPSWeight: 327 gramsTachometer:Indication range: 0-8000 RPMOperation mode: LCD display with red backlightDescription: Magnet movement gaugeWeight: 240gEasy to set pulse/revolution.Accept all input signals.Small specifications:Working voltage: 9-32 VDCStyle: stainless steel plateBacklight: redFixed size: 52mm2-1 / 16Background color: black The weight of an item: 130gInput range:Fuel level: 240-33 ohms, E-F.Voltage: 8-16VOil pressure: 10-184ohms, display 0-145 PSITemperature: 287.4-22.4 ohm, display 100-250FPackage includes:6* 52mm gauge6* Multi-plug socketNote:Connection tips: the red + orange wire is connected to the positive pole, and the blue wire is used for the negative pole. And the black signal wire is connected to the sensor. (Voltmeter has no black wire).Installation tips: Before installation, first make a hole in the panel (diameter: 52-53mm), and at the same time make sure there is a space (70mm in the backyard of the panel).
