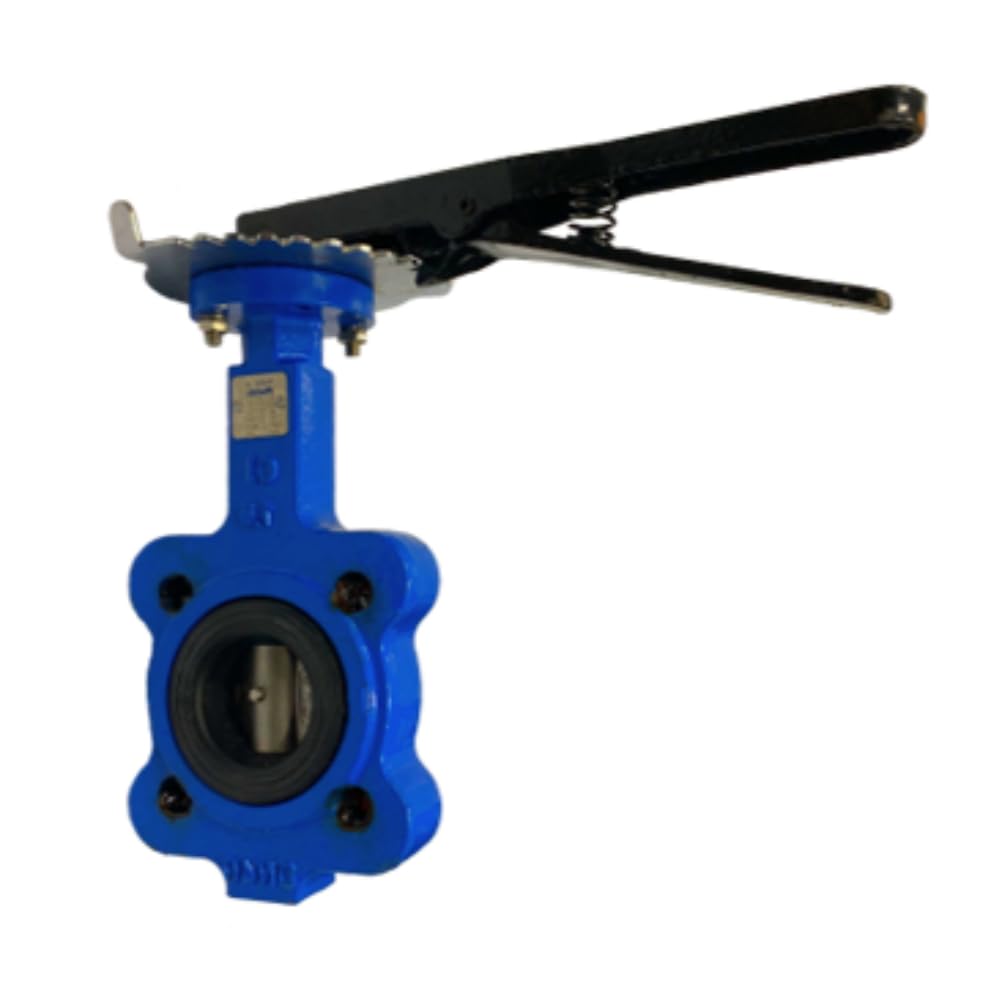

Welcome to AF Hydro! AF Hydro is an one-stop destination for low pressure valves and fittings. Established in 2016, we strive to deliver top-notch products to our clients. A wide selection of high-quality products are available and designed to ensure seamless flow and efficiency in your operations. Low Pressure Cast Iron Butterfly Valve - Lug Type A butterfly valve operates in a quarter turn to control the system flow. The disc of butterfly valve acts as a door in the pipeline, it rotates around a central axis to open or close the flow of fluid or gas. Butterfly valves provide benefits like minimal pressure drop, yet, it faces challenge in throttling applications with low pressure differences and might be influenced by choked flow. There are two types of butterfly valve which is lug type and wafer type. Lug type, quarter turn (90° rotation) valves Bolts are threaded into holes from each side valve's mounting flange. Made of cast iron Manufactured according to API 609 Working pressure is 150 PSI Generally applied in chemical, pharmaceutical, F&B industries. Easy application, lesser space requirement and maintenance To install the butterfly valve, kindly refer to the steps below; Clean the pipe ends thoroughly to remove any debris, dirt, or contaminants that could affect the sealing of the valve.Place the valve between two pipe flanges, aligning the bolt holes on the valve's lugs with those on the flanges. Insert bolts through the holes to temporarily hold the valve in place. Install gaskets between the valve and the flanges on both sides.Gradually tighten the bolts on both sides of the valve, alternating between bolts to ensure even pressure distribution. Product Specifications Product Type Butterfly valve Connection Type 2 ANSI 150# Flange End Size Range 1 ½” – 6” Material Made of cast iron which is excellent wear resistance and good heat retention Working Pressure 150 PSI Working Temperature -30°C to 120°C Usage Stop fluid flow
Butterfly valves are quarter-turn rotational motion valves used in pipelines to stop, regulate and start flow.

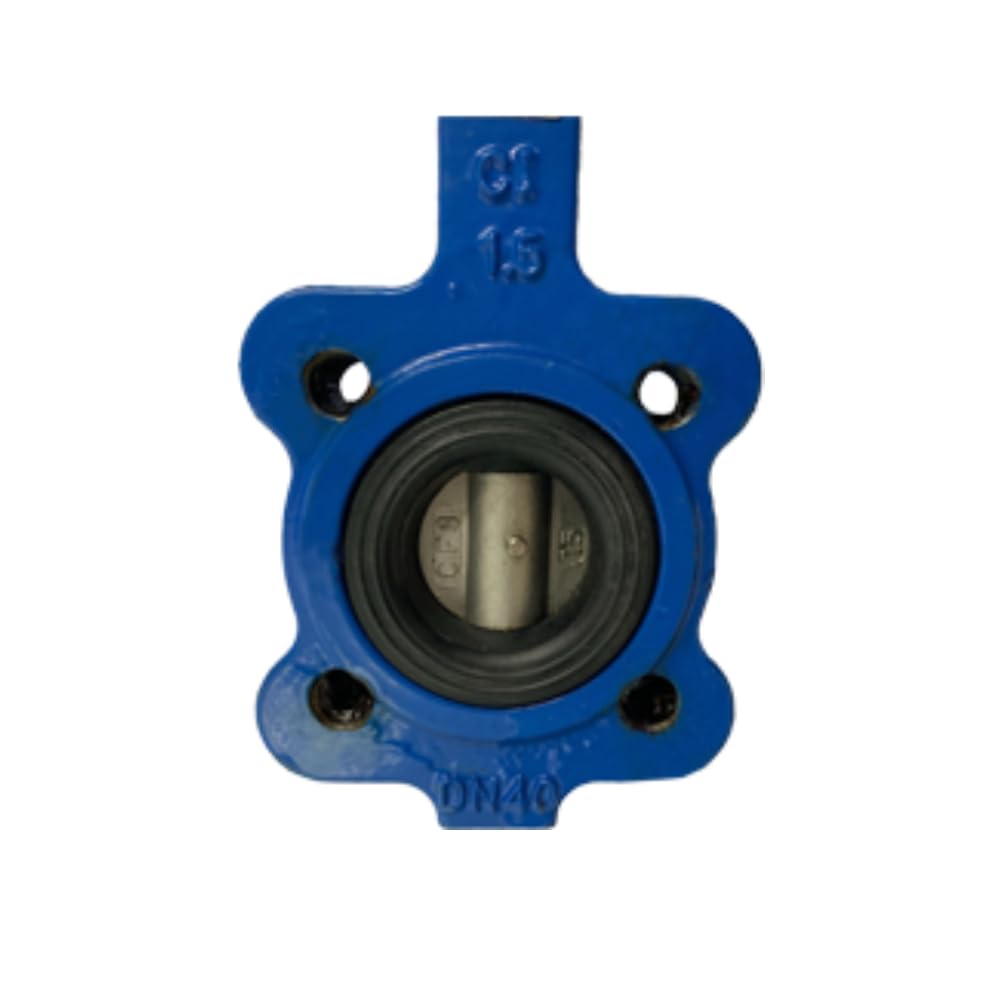

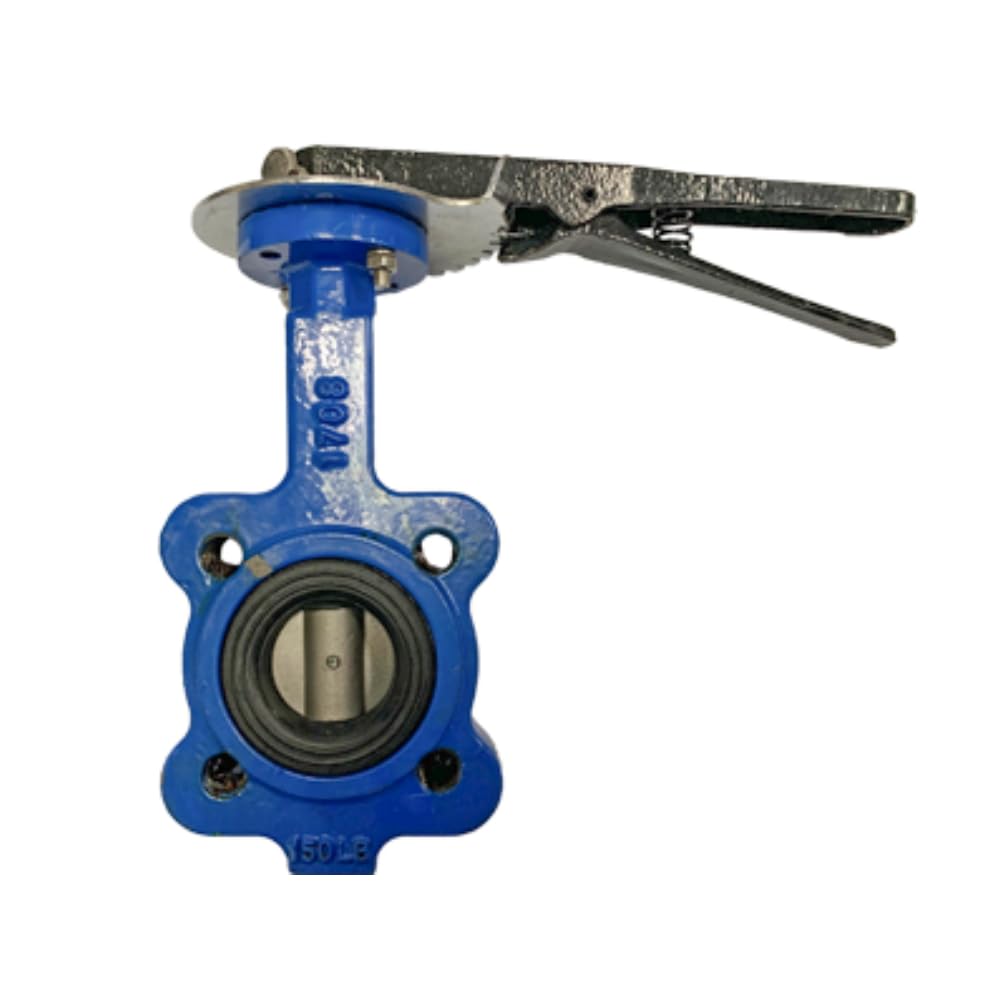

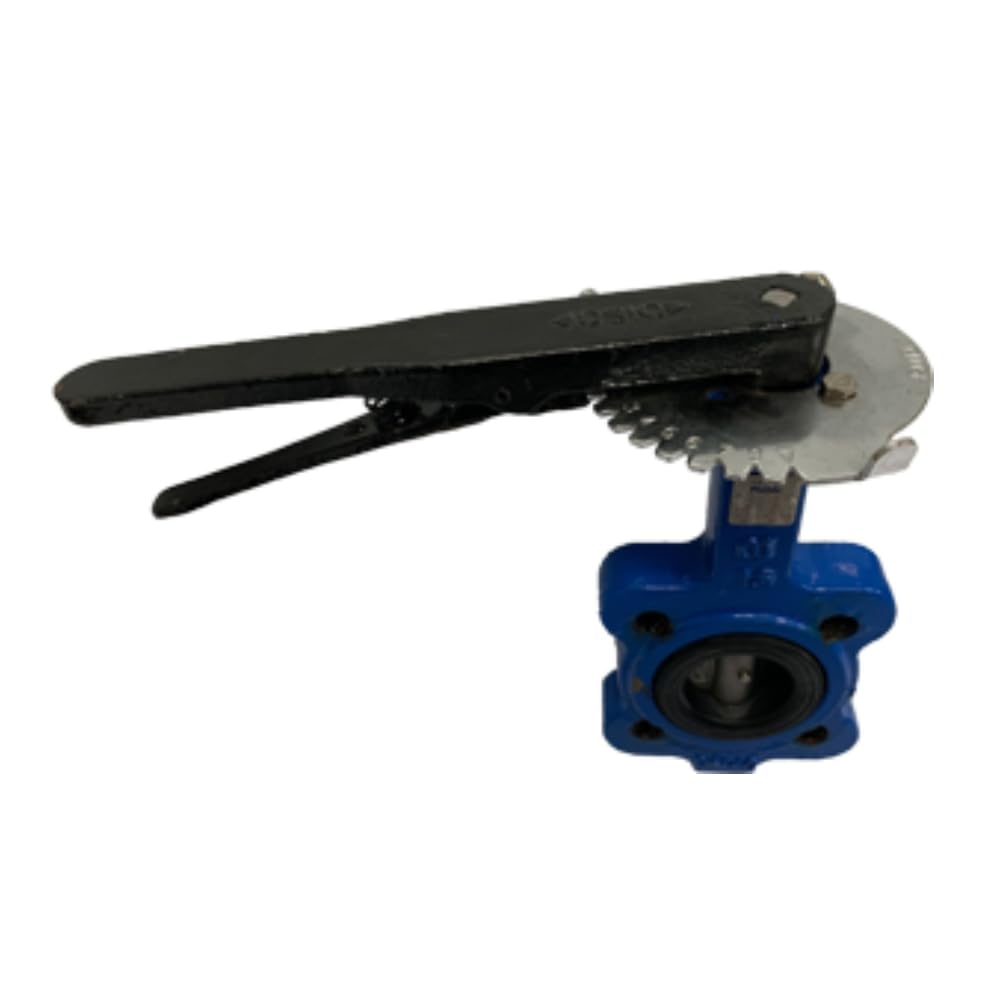

Lug type butterfly valve is designed with lugs or threaded inserts on its outer casing that allow to be installed using bolts.

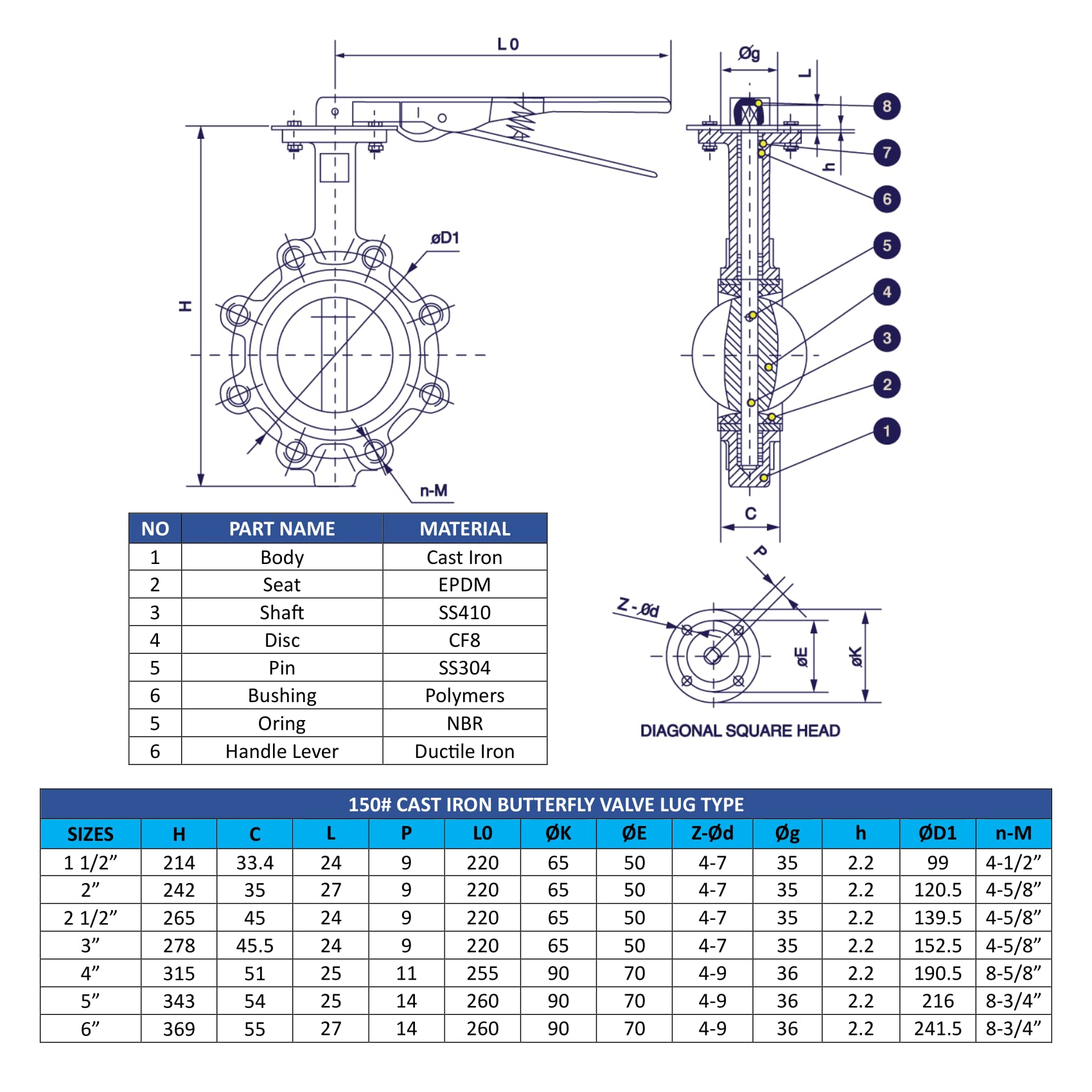

Made of cast Iron and design according to API 609
Reduced weight, a compact design, and economical maintenance costs.
Ability to withstand pressure up to 150 PSI. Suitable for working temperature range of -30°C to 120°C.
The butterfly valve is well built and good value. Be aware that additional shipping costs may have to be paid.
