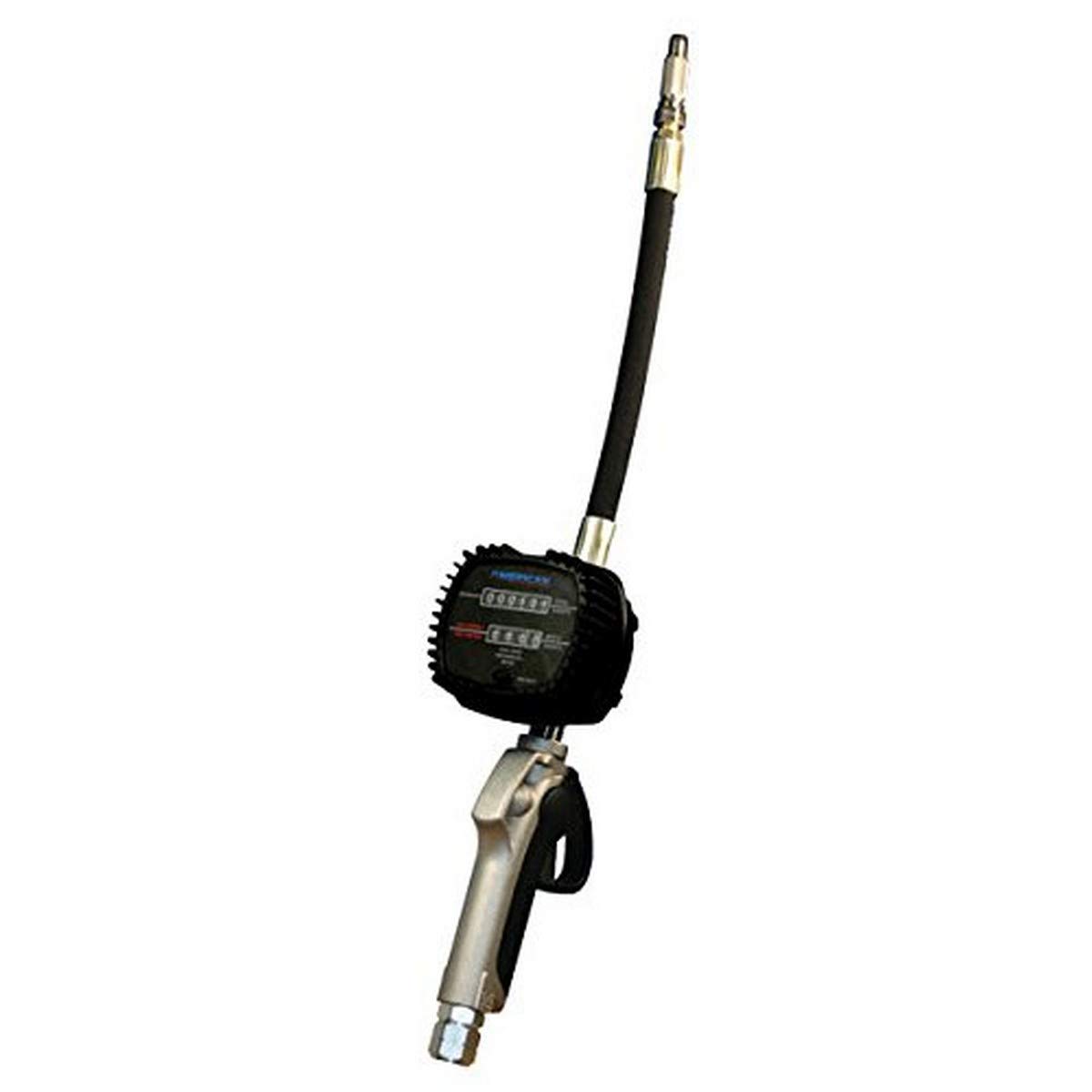

TIM-650-FM Mechanical Metered Control Handle with Flexible Extension for Oil or Anti-Freeze – 2.5 GPM Flow – Ideal for Industrial Fluid Dispensing, Lubrication Systems, and Equipment Maintenance

Product Description

American Lubrication Equipment TIM-650-FM Mechanical Metered Control Handle with Flexible Extension, 2.5 GPM Flow, For Oil or Anti-Freeze. Pro Series Mechanical Control Valves Superior Design- Enables the use of manual non-drip tips. Durable - No exposed pointers to break or turn backwards. Modular Assembly - Swivel, control valve, meter and tip assembly are separate units which simplifies repair. Self-Powered - Eliminates the headaches associated with dead batteries. Shock-Resistant - Rugged shock-resistant design stands up to the harshest environments. Meter bodies are equipped with a soft rubber shock-guard for added protection. Filter - All Pro Series mechanical control valves have built-in filters for added protection. Trigger Guard & Lock - All "TG" style control valves have a built-in trigger guard which helps prevent accidental dispensing as well as a built-in trigger lock allowing hands-free operation. Specifications: Meter Mechanism: Oval gear/mechanical, Measurement: Quarts, Inlet/Outlet: 1/2” NPT (F), Flow Range (TIM-616): 25 - 8 GPM, Operating Temperature: -4 to 176 F, Storage Temperature: -4 to 176 F, Operating Pressure: 1,000 PSI, Weight (TIM-600-RM): 3.45 Pounds, Accuracy: ± 1%, Repeatability: ± .2%. Fluid Compatibility: Automatic Transmission Fluid, Gear Oil, Hydraulic Oil, Motor Oil, Synthetic Oil. Mechanical Pro Series "TG" Style Control Valves, Mechanical metered control handle for oil or anti-freeze. Equipped with trigger guard, flexible extension and manual non-drip tip. Meter body designed with odometer readout and 6-bolt construction for high internal pressure rating. 2.5 GPM flow. Metered Units: Quarts, Totalizer Units: Quarts, Tip Assembly: TIM-743, Tip Assembly Description: Flex Manual, Tip Diameter: 5/8", Working Flow: 2.5 GPM.
