JEGS 50257 Street & Strip Engine Swap Oil Pan for GM LS Series - Front Sump Design Fabricated | High Performance Oil Pan for LS Engine Swaps in Hot Rods, Muscle Cars & Racing Vehicles

Product Description

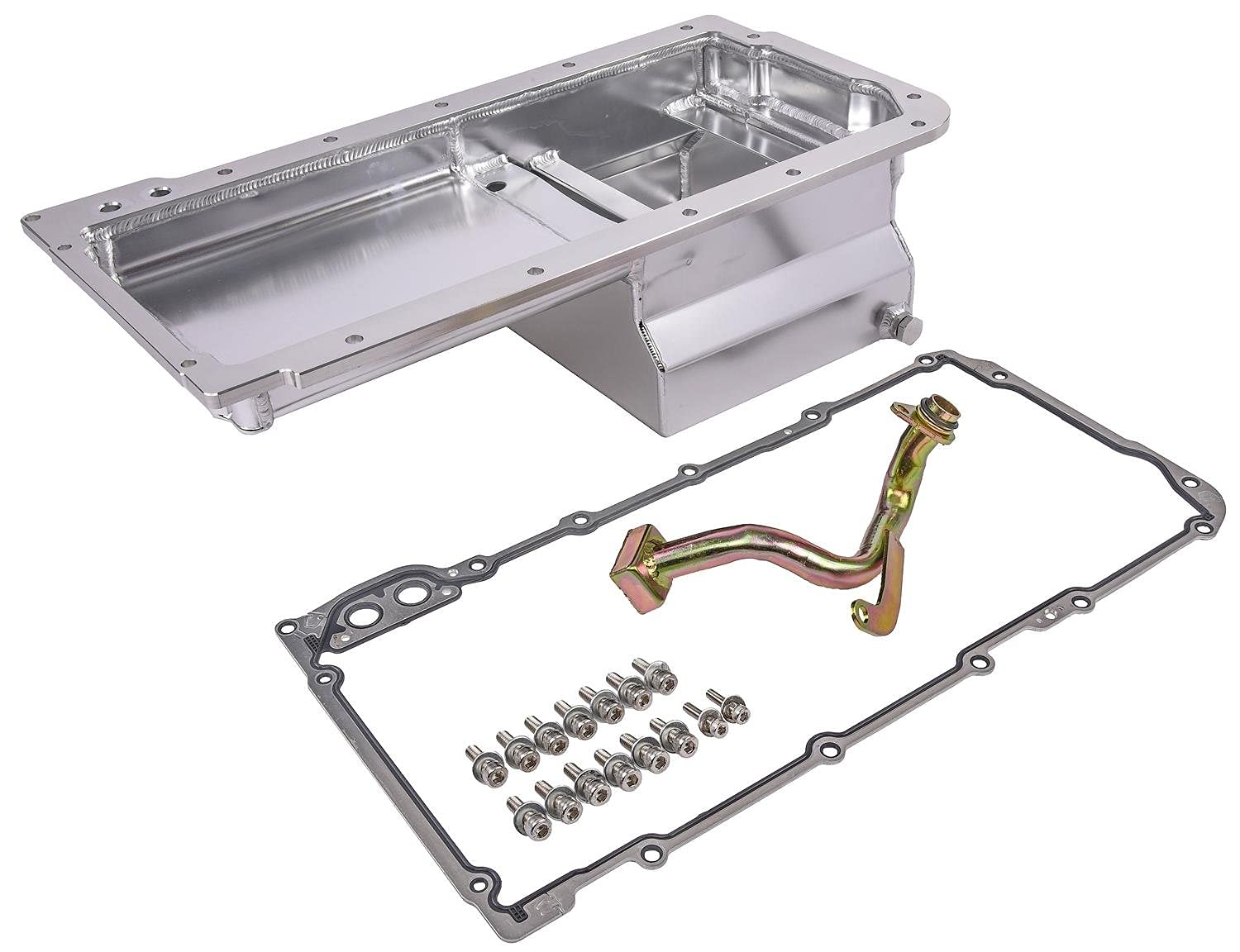

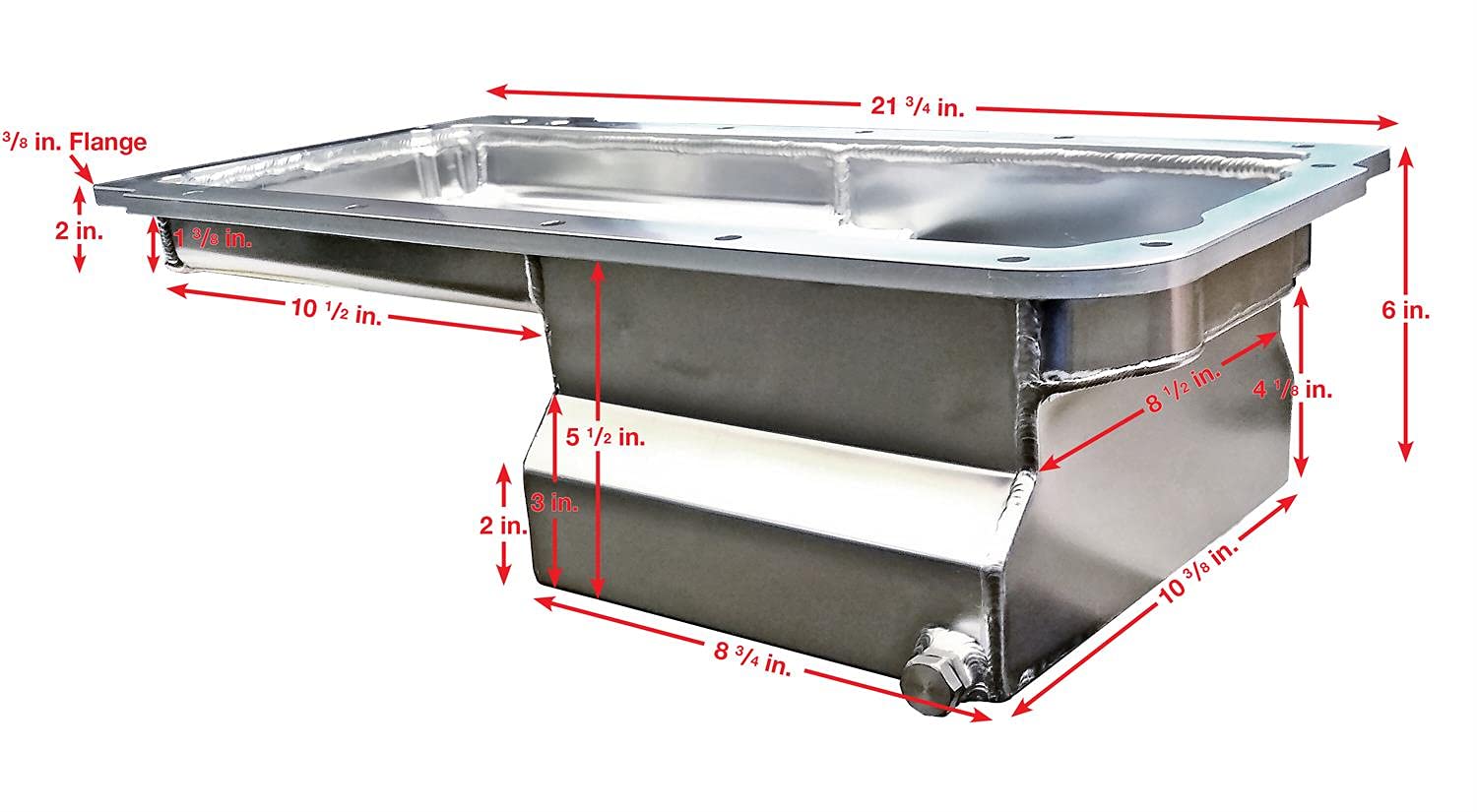

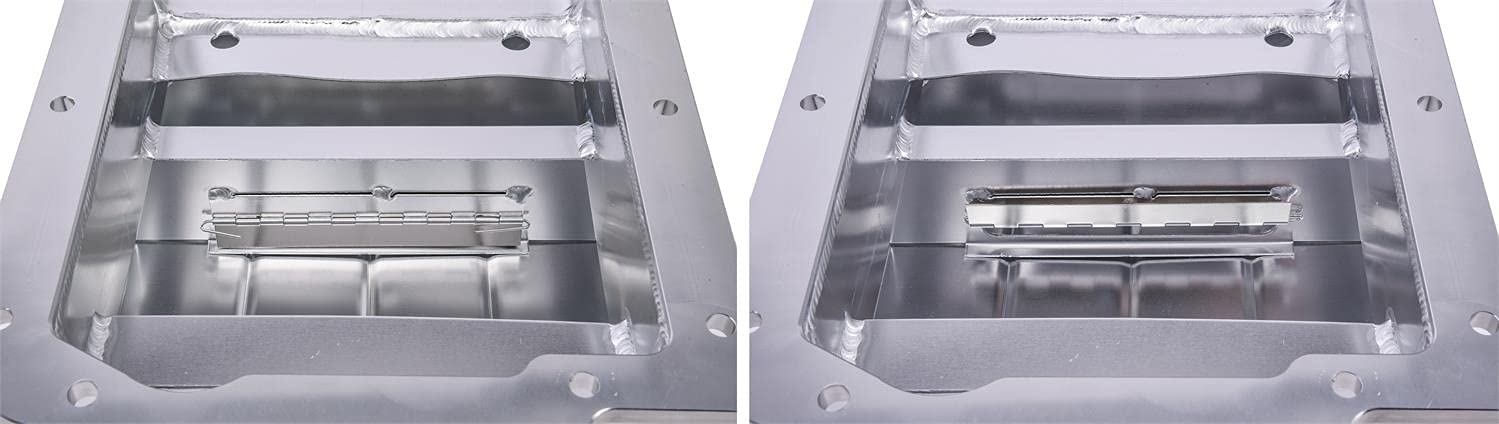

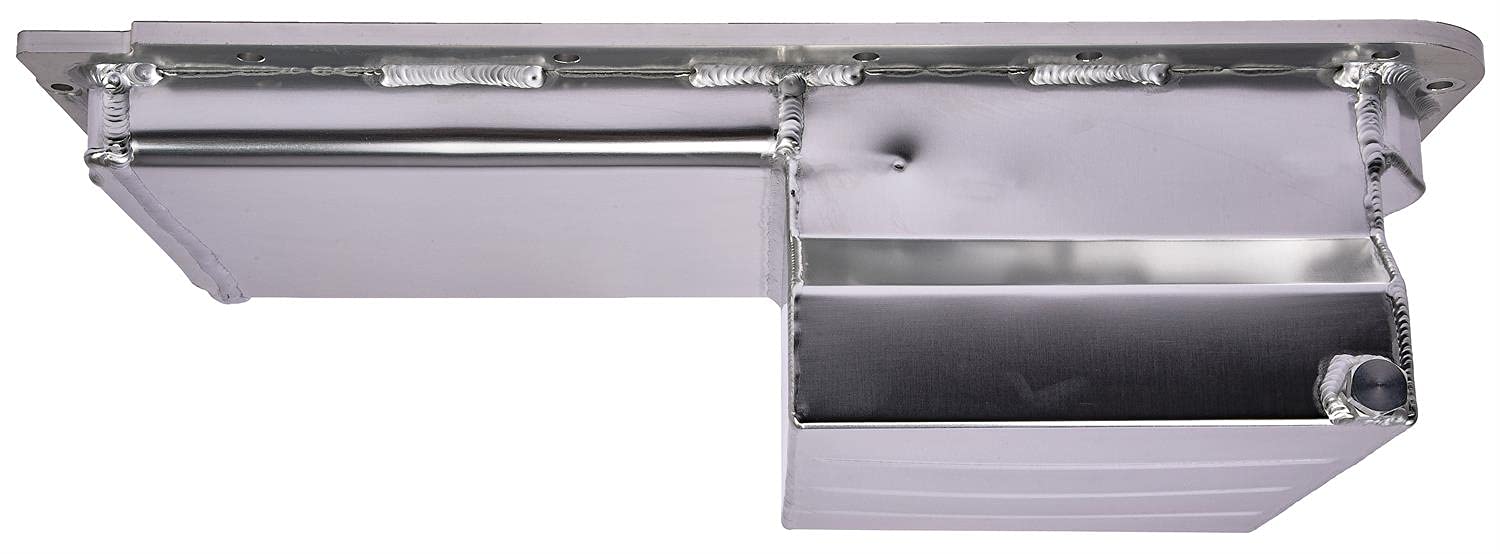

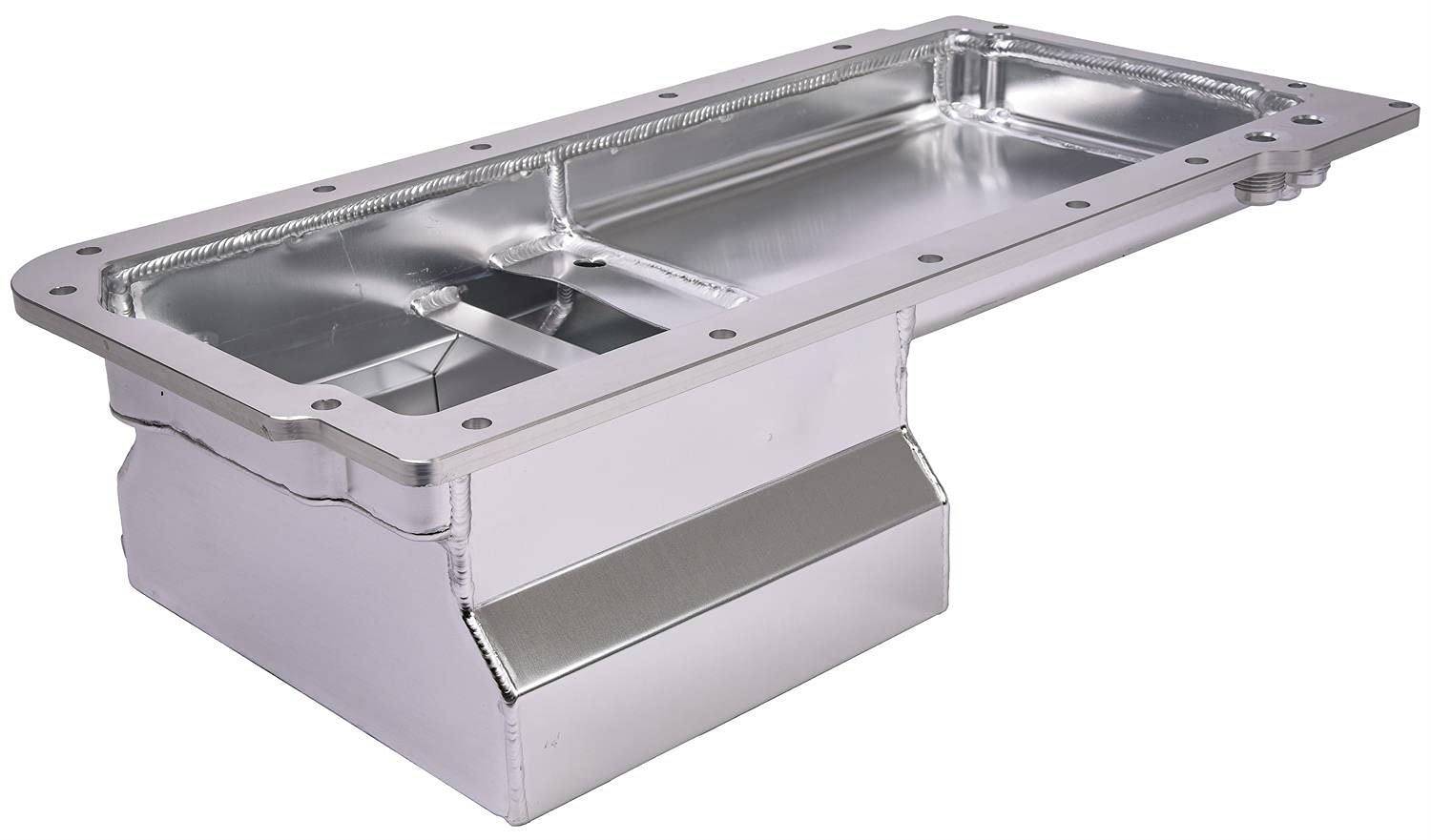

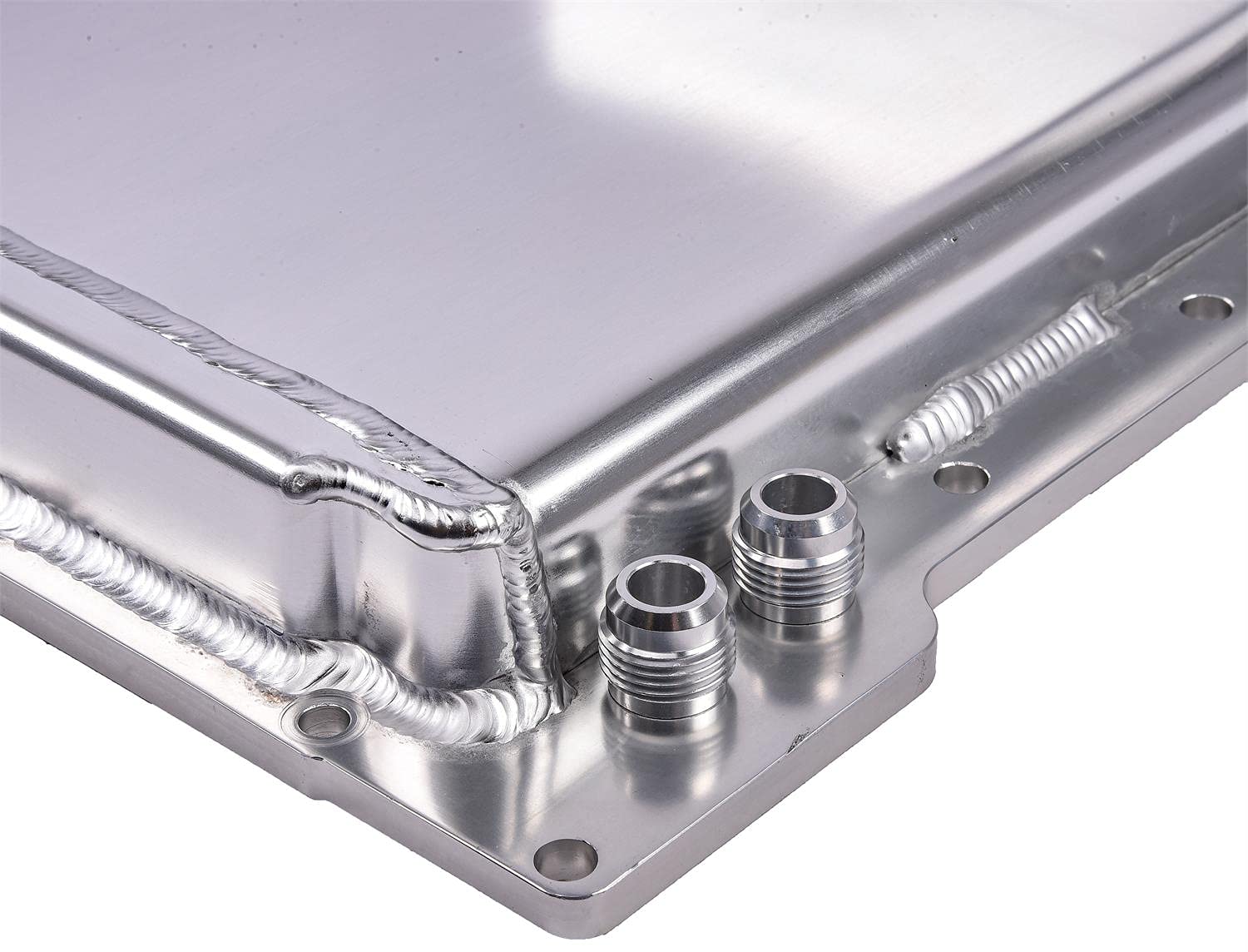

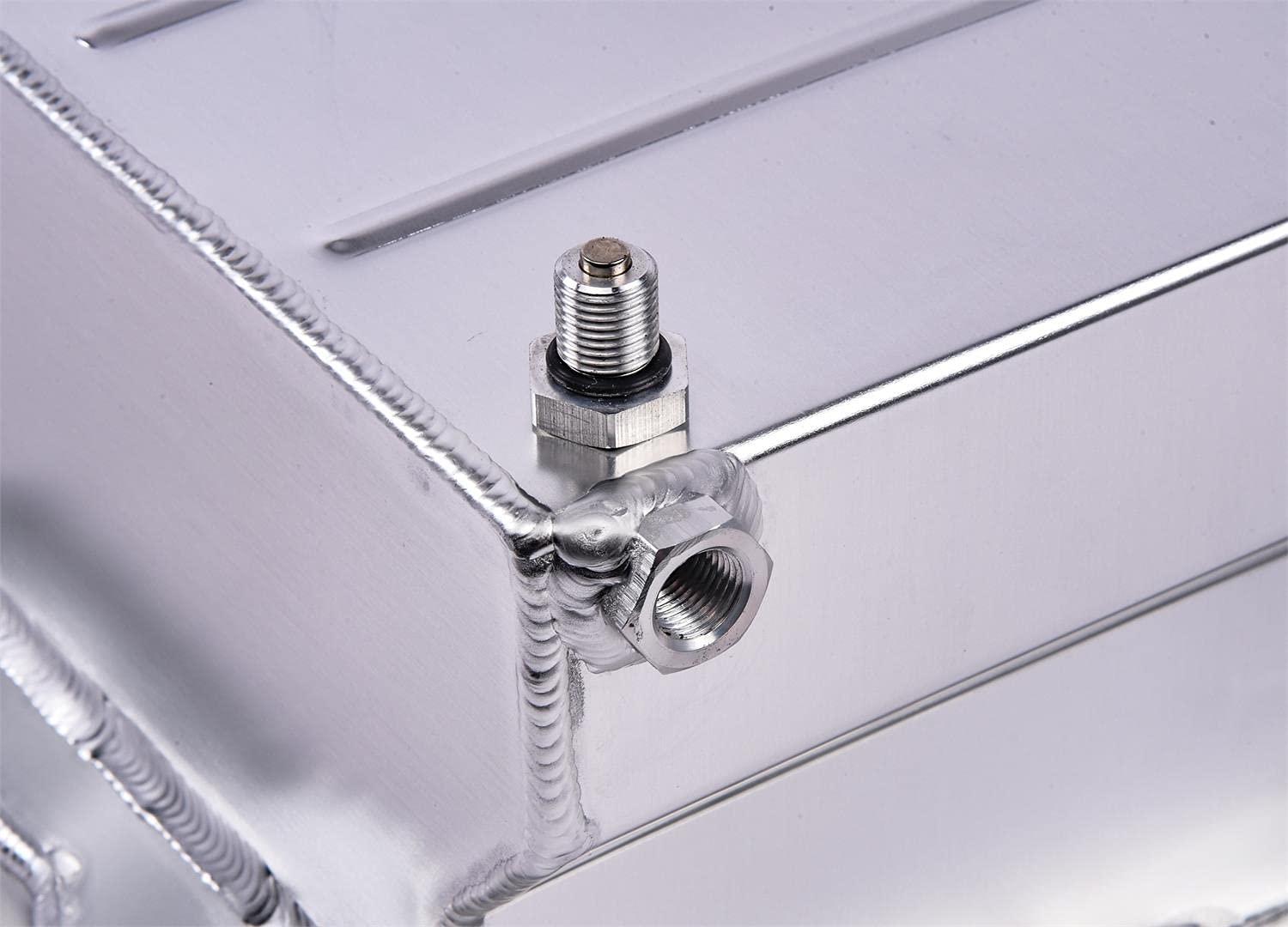

Street & Strip Engine Swap Oil PanFits GM LS Series EnginesFront Sump DesignFabricated Aluminum7-Qt. Capacity + FilterNatural FinishIncludes:(1) Magnetic Drain Plug(1) Gasket(1) PickupHardware Make your GM LS swap easy with a front sump oil pan. JEGS 50257 fabricated aluminum GM LS oil pan in natural finish comes with a gasket, pickup, and hardware, giving you everything you need for a quick and worry-free installation. This kit provides an affordable option when performing a GM LS engine swap. JEGS LS swap oil pan designed for the D.I.Y. guy with upgrades including connections for a remote oil filter pickup system that will improve oil change accessibility and internal baffles that reduce oil sloshing. The fabricated aluminum construction reduces weight, and the thick mounting flange offers an increase in block rigidity. A remote oil filter kit is not included and can be purchased separately.FeaturesFits LS1, LS2, LS6, and LQ9 EnginesPan mounting flange thickness: 3/8 in.Drain Plug Threads: 1/2 in. -20(2) -8 AN Remote Oil Filter FittingsBaffled to prevent oil starvation under hard accelerationDesigned for use with a remotely mounted oil filterIncreased oil capacity compared to the stock oil panTIG-weldedRequires Remote Oil FilterOil pan hardware included:(13) 8mm x 1.25 Bolts (Allen Head)(13) 8 mm Flat Washers(2) 6mm x 1.0 Bolts (Allen Head)(2) 6 mm Flat Washers
