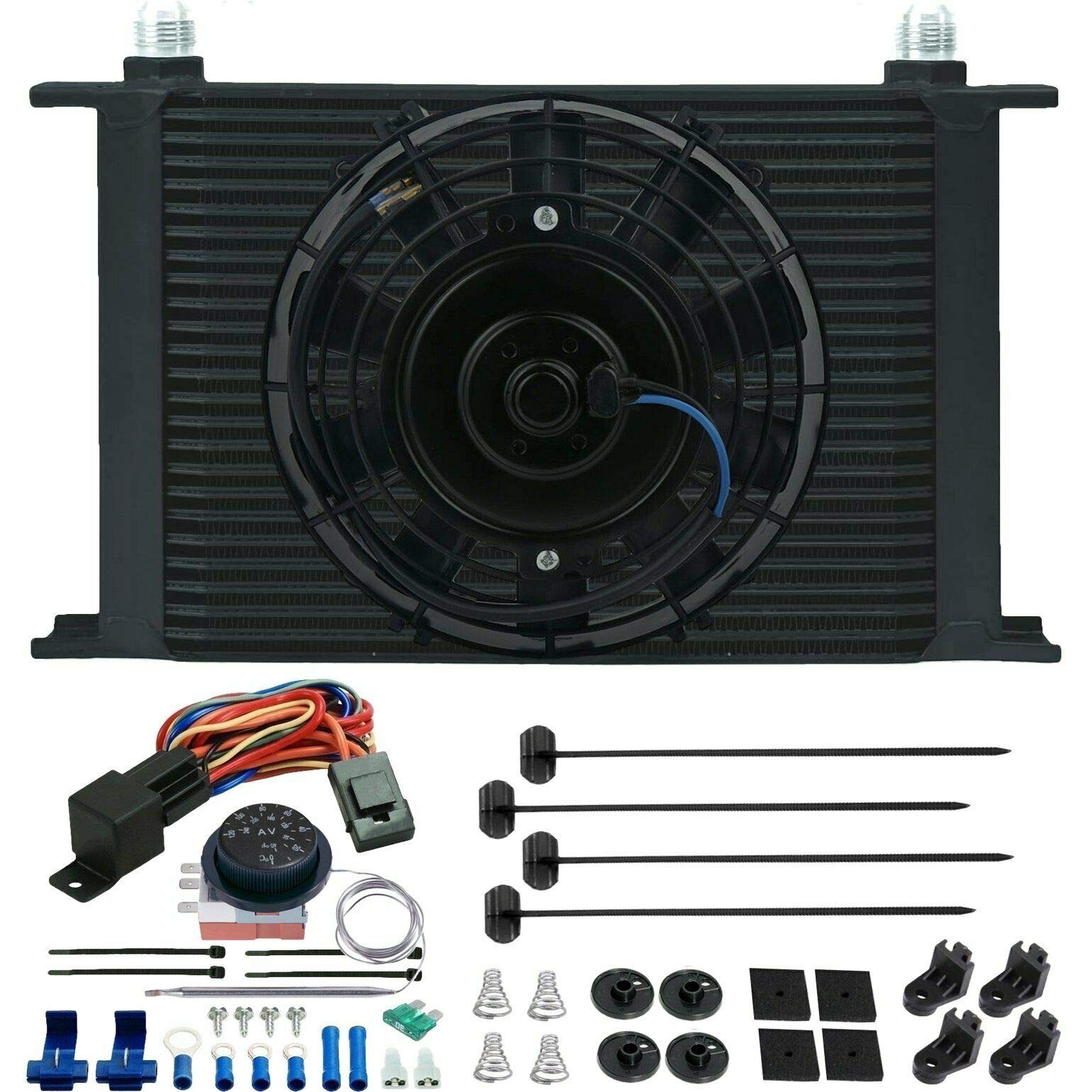

25 Row 10AN Transmission Oil Cooler with 6" Electric Fan & Adjustable Switch Wiring Kit - High Performance Cooling for Racing, Towing & Heavy Duty Vehicles

Product Description

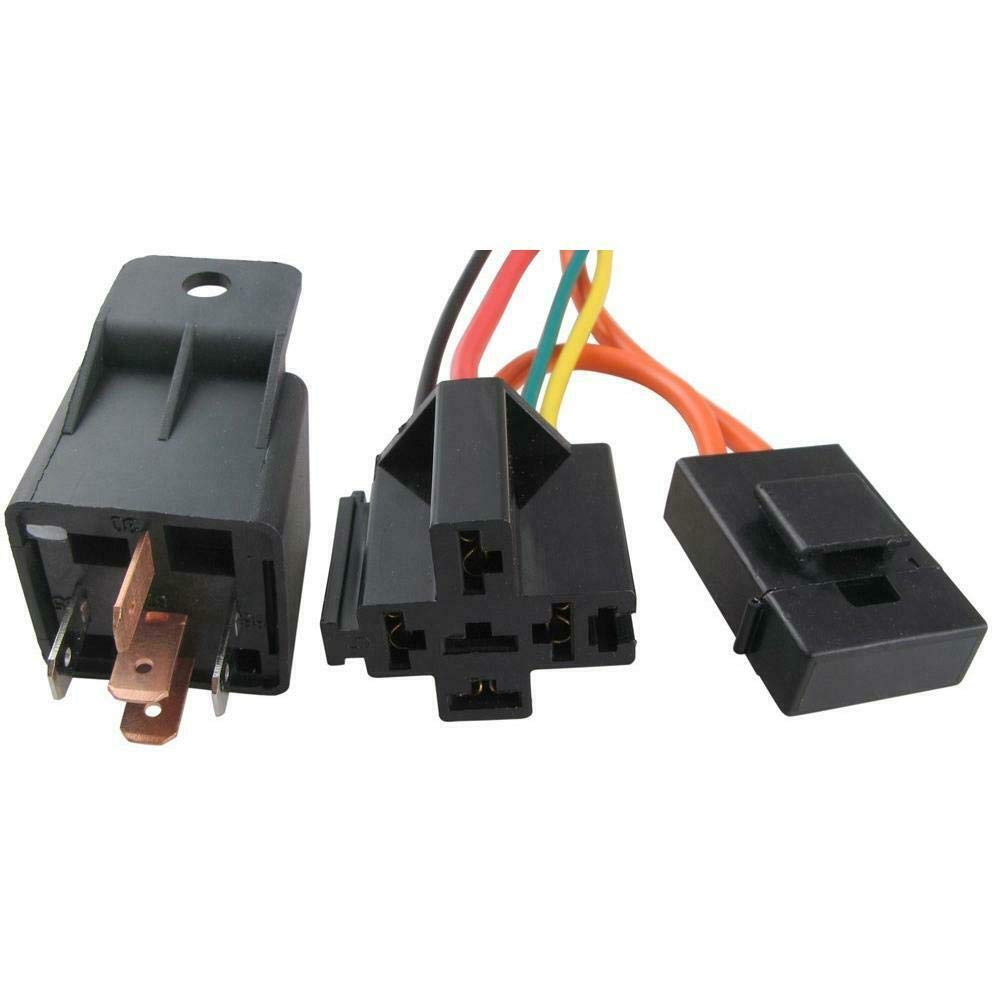

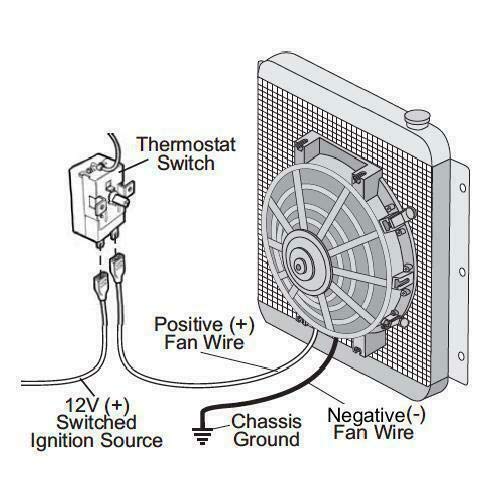

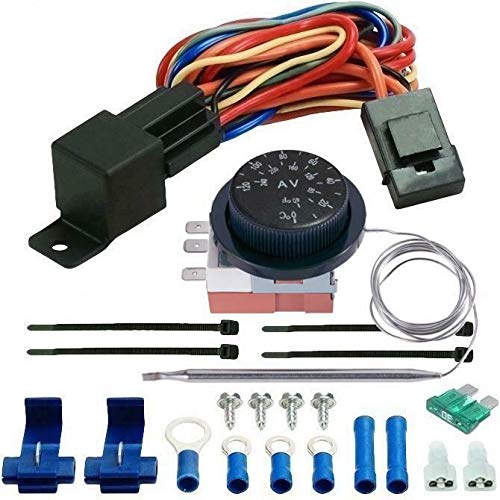

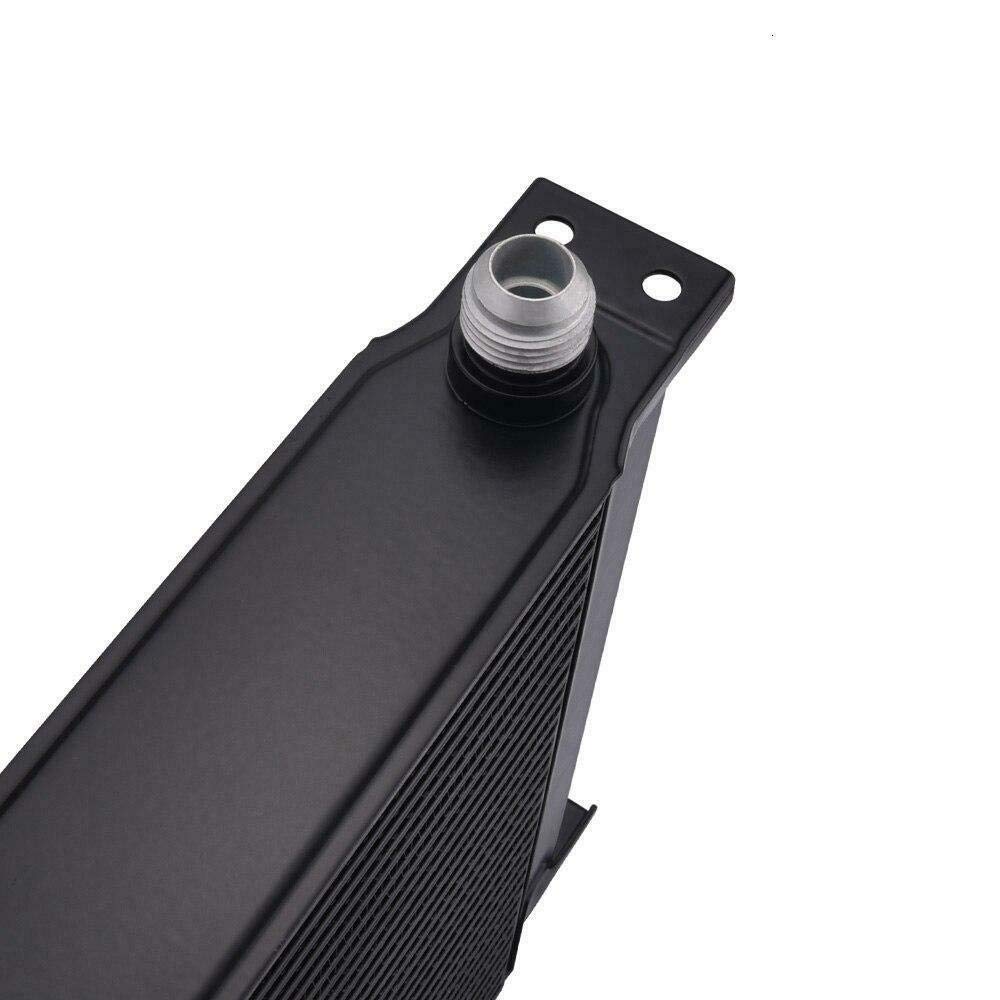

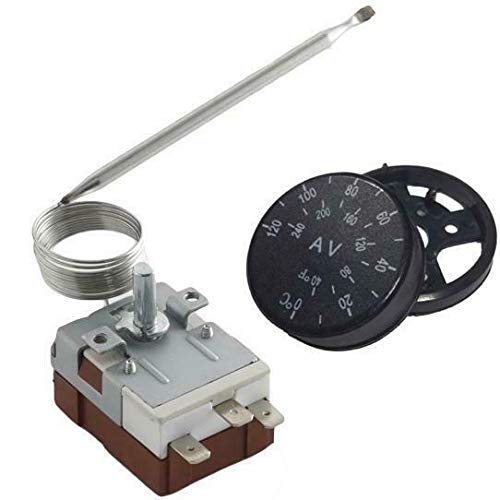

Fluid Cooler:Universal 25 stacked plate aluminum heavy duty engine transmission cooler.Minimal pressure drop and to be used for engine, transmission or fuel cooling.Furnace brazed aluminum construction with 4 integrated mounting brackets.Full 2" deep turbulator-equipped plates and a matte black powder coat finish.Dimensions: 2" x 8.2" x 13" with 10AN end fittings and 46000 BTU per hour.Electric Fan:Universal 12 volt high performance 6" inch small electric cooling fan.Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.Configured as an air puller to be on the inside and pull air through.Includes mounting bracket feet and complete install fin tie strap kit.Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.Wiring Kit:Universal automotive electric fan 5-pin 40A relay switch harness kit.14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.Maximum 30 amp continuous draw with 30A in-line fuse protection.A/C override or manual toggle switch wire built directly into harness.Installation instructions, wiring diagram and components included.Thermostat:Universal adjustable automotive electric fan thermostat switch sensor.Turn-on range of 32-248'F with turn-off always set at 15 degrees less.3 pin design allows for wiring as a normally open or closed circuit.Probe pushes between radiator fins or inserts into coolant hose line.Detailed install instructions, wiring diagram and hardware included.
